Attaching Platform to Combine

IMPORTANT: Latch pins are not to be actuated with header on the ground. If multi-coupler must be actuated with header on ground, disconnect cable from handle.

Attaching platform to a 9650 STS, flight extension are required (see your John Deere Dealer).

Sound horn, start engine and lower feeder house.

Drive combine slowly forward until feeder house is centered in attachment frame opening.

NOTE: If attaching platform to a machine without CONTOUR MASTER, platform will require manual leveling ( see Leveling Header Without CONTOUR MASTER in this section).

Raise platform completely, verify hooks (A) on both sides of feeder house catch front side of main frame beam of platform.

Set parking brake, shut off engine, remove key and lower safety stop.

A-Hook (2 on feeder house)

OUO6091,00015EB -19-29JUN04-1/8

NOTE: If combine is not equipped with latching cable (C), latching pins will have to be manually latched (see, Manual Latch Feeder House Pins in Attaching Platform to Pre 60 Series Combines section).

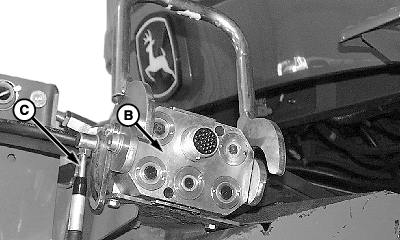

Remove cover (A) and clean multi-coupler face (B).

A-Cover
B-Multi-Coupler Face
C-Latching Cable

OUO6091,00015EB -19-29JUN04-2/8

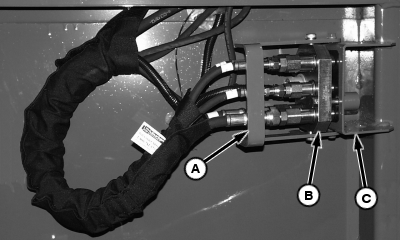

Open handle (A) and remove multi-coupler (B) from storage bracket (C).

A-Handle
B-Multi-Coupler
C-Storage Bracket

OUO6091,00015EB -19-29JUN04-3/8

IMPORTANT: To prevent damage to the latching cable, a shear screw is attached to the handle. Attempts to actuate the latching pins with the header on the ground will shear the screw on the handle. (See Extra Shear Screw Location later in this section.)

NOTE: Combine without cable latching option, skip to next step.

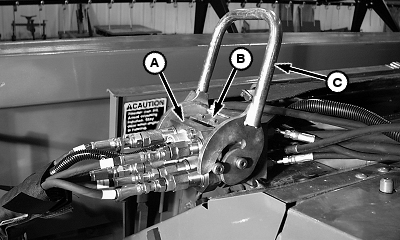

Install multi-coupler (A) onto receptacle (B) on feeder house and close handle (C).

A-Multi-Coupler
B-Receptacle
C-Handle

OUO6091,00015EB -19-29JUN04-4/8

IMPORTANT: Failure to slide lock plate through multi-coupler assembly could result in the header falling off while harvesting or transporting.

When multi-coupler handle is closed, slide lock plate (A) through multi-coupler latch assembly (B) and retain with quick-lock pin (C).

A-Lock Plate
B-Multi-Coupler Latch Assembly
C-Quick-Lock Pin

OUO6091,00015EB -19-29JUN04-5/8

NOTE: With header attached, latch pins should move freely through latch plate holes. If latch pins do not extend through the latch plates, make sure that the latching plates on the header are properly adjusted.

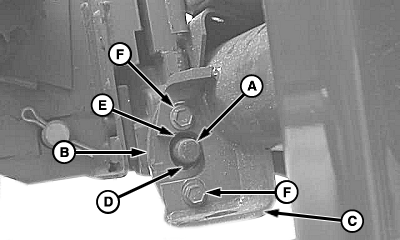

Latch pins (A) should move freely through latch plate holes in header when multi-coupler is latched. Latch plate (B) must make contact with bracket (C). Less clearance (D) should be maintained between bottom of plate and pin rather than top of plate (E) and pin. This may require latch plate to be flipped.

If adjustment is needed: Remove cap screws (F), flip plate (D) end for end and reinstall and tighten cap screws to specification.

Specification

A-Latch Pin
B-Latching Plate
C-Bottom Bracket
D-Gap
E-Top Of Plate
F-Cap Screws

OUO6091,00015EB -19-29JUN04-6/8

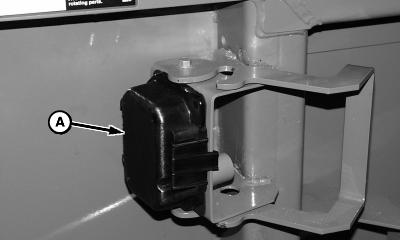

Install multi-coupler cover (A) on platform storage bracket.

A-Cover

OUO6091,00015EB -19-29JUN04-7/8

IMPORTANT: Before engaging platform, see Checking Platform Speeds in Operating section of this manual for proper front shaft (platform back shaft) speed.

Remove telescopic shaft (A) from storage position and install onto feeder house backshaft, verify quick attach collar locks fully.

A-Telescopic Shaft

OUO6091,00015EB -19-29JUN04-8/8
