Adjusting Auger Fore/Aft

CAUTION: Avoid serious injury. Raise platform and reel completely, set safety stops.

Avoid serious injury. Shut off engine and remove key.

Avoid serious injury from cutterbar movement when auger is turned. Remove knife drive belt (see Remove Knife Drive Belt From Drive Sheave section).

IMPORTANT: To avoid damaging floor or fingers, maintain a minimum 16 mm (5/8 in.) clearance between center auger fingers and floor.

2. Loosen or tighten nuts (C) and (B) to gain desired auger position.

NOTE: Check auger chain tension (see "Adjusting Auger Chain").

3. Tighten nuts (A-C) and auger drive chain idler (see "Adjusting Auger Chain").

4. Repeat procedure on opposite end of auger.

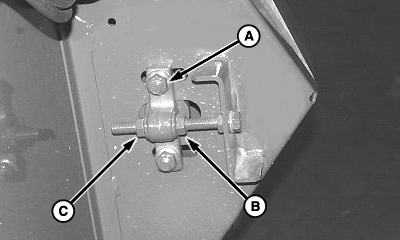

A-Nut (2 used)
B-Nut
C-Nuts
