Rear Auger Stripper Extension Location

Rear Auger Stripper Extension Location

causym CAUTION: Cutterbar and knives will move whenever the auger is rotated. Keep hands, feet and clothing away from cutterbar when servicing, inspecting or rotating the auger.

NOTE: Verify that strippers are not obstructing feeding area of feeder house.

The auger strippers (A) can be positioned in three different locations (B), (C) and (D). Correct stripper position ensures good crop feeding.

Platforms are shipped from the factory with the auger strippers in position (C).

Combines with feeder house widths other than 1390 mm (55 in.) may require using position (B) or (D).

Machine Location (figure 1)
9560 STS B
All Other Machines C
9600CWS, 9610 CWS, 9650 CWS, 9660 CWS D


H69714

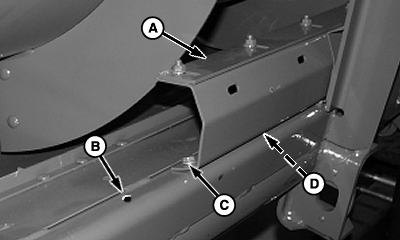

Figure 1


A-Stripper
B-Location (9560 STS)
C-Location (for all other machines)
D-Location (9600 CWS, 9610 CWS, 9650 CWS, 9660 CWS.)

OUO6091,000180B -19-01JUL04-1/1
