Opening and Closing Right and Left-Hand Shields

NOTE: Procedures for opening the right and left-hand shields for a rigid or a flex are the same.

1. Turn knob (A) and open left-hand end shield (B).


A-Knob
B-Left-Hand End Shield

H68697

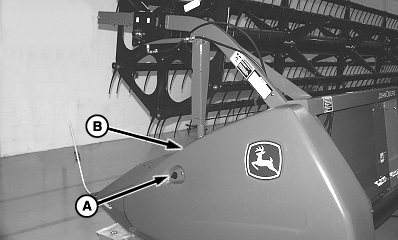

Left-Hand End Shield on Rigid Platform

OUO6091,000181F -19-27MAY04-1/2

2. Remove pin (A) and right-hand end shield (B).

3. Reverse steps to close left and right-hand shields.


A-Pin
B-Right-Hand End Shield

H80444

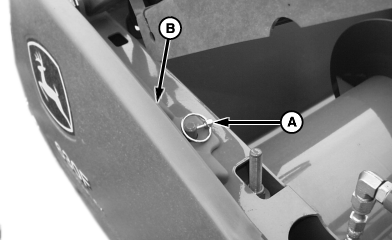

Right-Hand End Shield Flex Platform
