OMH215798: 600 F and 600 R Series Cutting Platforms, Block File: OUO6091_0001820_19

Rigid Platforms

NOTE: Lower platform completely to allow for ease of knife drive belt removal.

1. Open left-hand shield (see Opening Right and Left-Hand Shields in this section).

2. Pull up on tensioner arm sheave (A) to relieve belt tension.

3. Remove drive belt (B).

4. Install new belt and close left-hand shield.

A-Tensioner Arm Sheave
B-Cutterbar Drive Belt

OUO6091,0001820 -19-25MAY04-1/3

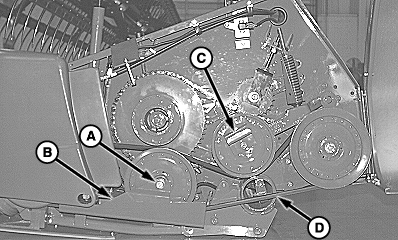

Flex Platforms

NOTE: Lower platform completely to allow for ease of knife drive belt removal.

1. Open left-hand shield.

2. Loosen cap screw (A) and remove belt shield (B).

3. Pull up on tensioner arm sheave (C) to relieve belt tension.

4. Remove drive belt (D).

5. Install new belt.

6. Reinstall belt shield and retain with cap screw.

7. Close left-hand shield.

A-Cap Screw
B-Belt Shield
C-Idler Sheave
D-Cutterbar Drive Belt

OUO6091,0001820 -19-25MAY04-2/3

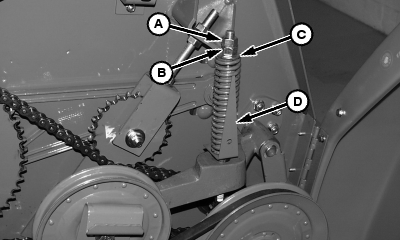

Adjusting Knife Drive Belt Tension

1. Raise platform completely and lower feeder house safety stop.

2. Loosen jam nut (A).

3. Tighten nut (B) until washer (C) aligns with end of gauge (D).

4. Tighten jam nut.

Flex platform shown

A-Jam Nut
B-Nut
C-Washer
D-Gauge

OUO6091,0001820 -19-25MAY04-3/3
