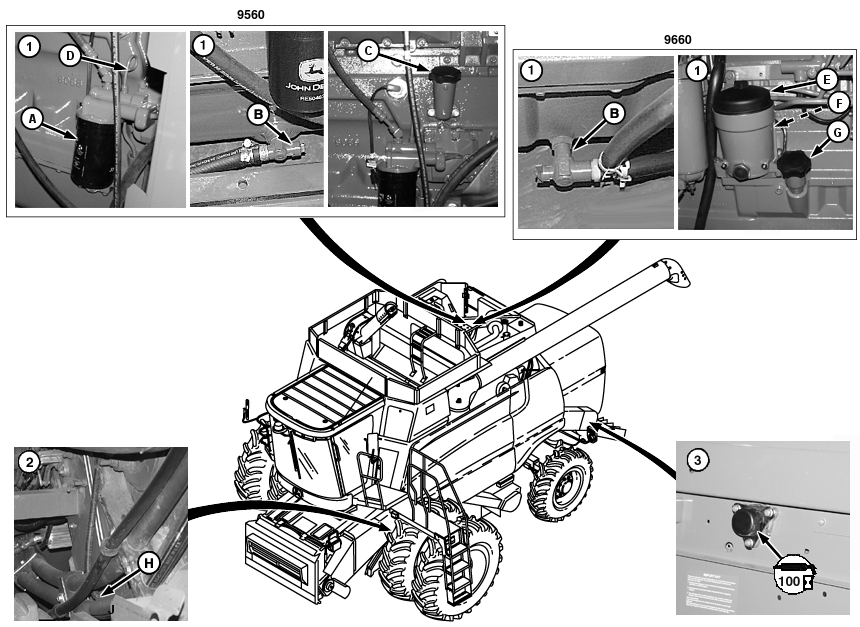

A-Oil Filter
B-Drain

C-Cap
D-Dipstick

E-Cap
F-Oil Filter

G-Dipstick
H-Valve

IMPORTANT: Change oil every 100 hours if fuel is more than 0.5 % sulfur.

Fill crankcase with seasonal viscosity grade oil or TORQ-GARD SUPREME ™ (250 hours change interval). If using PLUS-50 ™ oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

Do not operate engine with oil level below low mark on dipstick.

1. 9560 Combine Engine Crankcase Filter - Remove and replace oil filter (A). Open drain (B) to remove oil (after first 100 hours only). Remove cap (C) to fill and check oil with dipstick (D) after filling.

TORQ-GARD SUPREME is a trademark of Deere & Company
PLUS-50 is a trademark of Deere & Company

OUO6075,0003706 -19-29JUN04-1/2

9660 Combine Engine Crankcase Top Load Oil Filter - Turn drain (B) to remove oil (after first 100 hours only). Remove cap (E) and remove old filter (F). Replace with new filter and install cap and tighten to specifications.

Specification

2. Air Conditioning Drain Hose - Clean out end of air conditioning drain hose. Be certain valve (H) is installed on end of hose.

3. Chopper Bearings - Grease fitting (both sides).

OUO6075,0003706 -19-29JUN04-2/2
