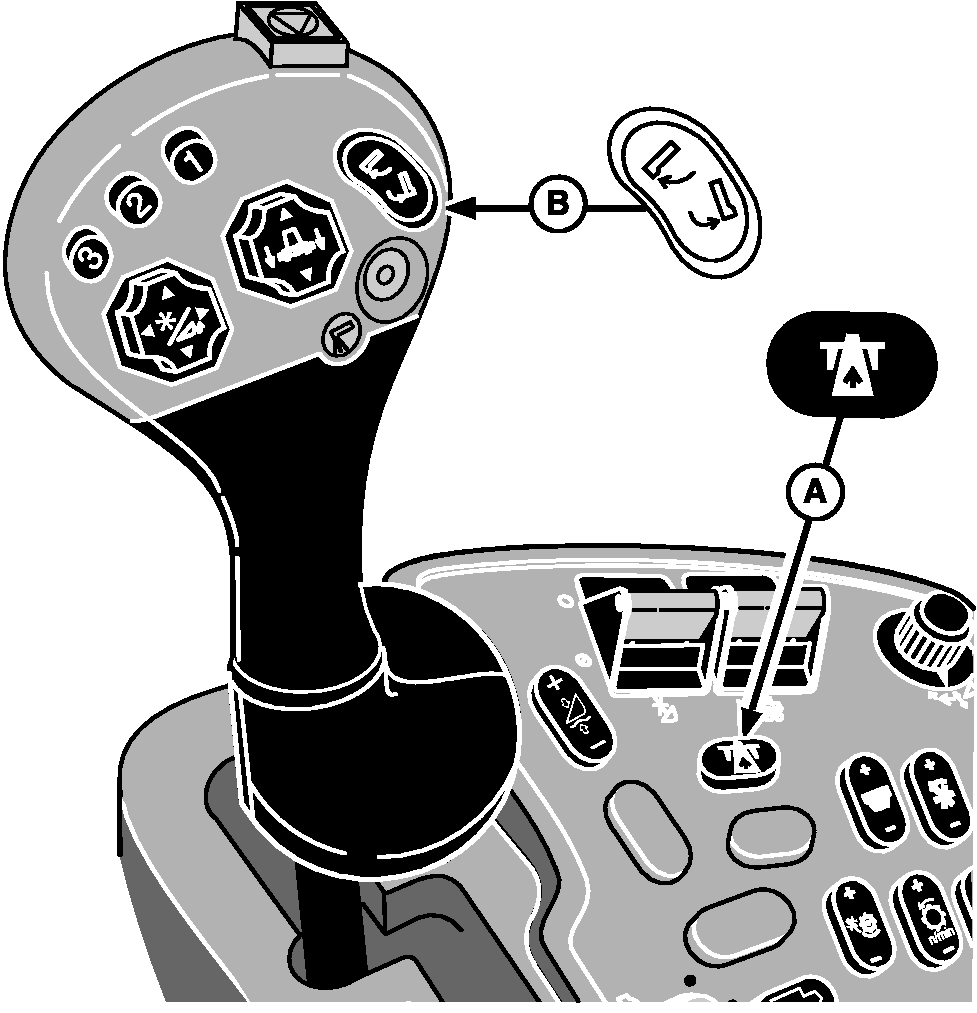

Unloading Auger Swing Switch (Black)Road transport disconnect switch (A) must be in field position to swing auger. Unloading auger switch can be control manually or automatically. Press top of switch (B) to swing auger out or press bottom of switch to swing auger in. Manual Control: Press and hold switch down part way in until auger reaches the desired position. Auger stops when switch is released. NOTE: When auger automatic swing switch is operated while raising or lowering the feeder house, auger swing cylinder may become "starved" for oil and stop working after two seconds. To complete auger swing, press switch until auger has completed swing. Automatic Control: Press switch all the way down and release it. Auger will swing fully outward or inward without holding switch. NOTE: Automatic auger swing function will not operate when unloading auger drive is engaged. When unloading auger is not used, it is recommended to swing the unloading auger back to the transport position. |
|
OUO6075,0003617 -19-23APR04-1/1 |
