Remove and Install High Intensity Discharge (HID) Xenon Lights (Optional)

CAUTION: Avoid serious injury or death from electric shock or lamp explosion. This lamp is powered by 25,000 volts. Do not begin installation of HID-Xenon lights unless lights are turned OFF, engine is shut OFF, parking brake is set, key is removed, and appropriate eye protection is worn.

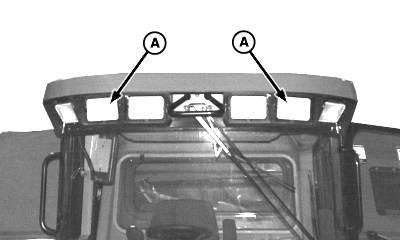

HID-Xenon lights (A) are located in the second and fifth hole in the cab light panel.

A-HID-Xenon Lights

OUO6075,00036A6 -19-29APR04-1/6

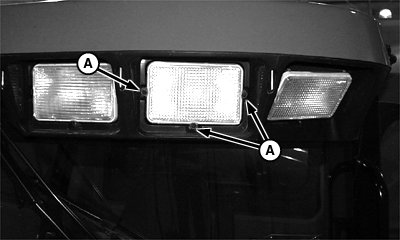

Remove adjusting screws (A).

A-Adjusting Screws (3 used)

OUO6075,00036A6 -19-29APR04-2/6

IMPORTANT: To prevent equipment damage make sure machine lights are turned OFF before disconnecting wiring harness connector.

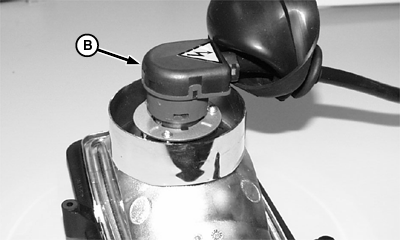

Remove rubber boot (A) from light.

Disconnect ballast wiring harness connector (B) from light by turning counterclockwise.

Remove and replace bulb.

A-Rubber Boot
B-Ballast Wiring Harness Connector

OUO6075,00036A6 -19-29APR04-3/6

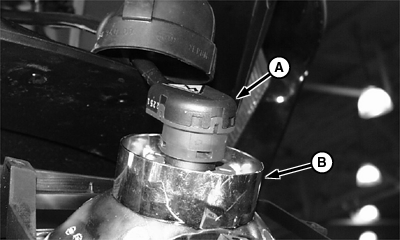

Attach ballast wiring harness connector (A) to light assembly (B).

A-Ballast Wiring Harness Connector
B-Light Assembly

OUO6075,00036A6 -19-29APR04-4/6

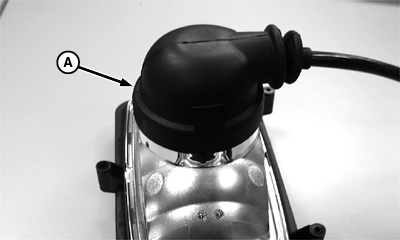

Slide rubber boot (A) onto light assembly.

A-Rubber Boot

OUO6075,00036A6 -19-29APR04-5/6

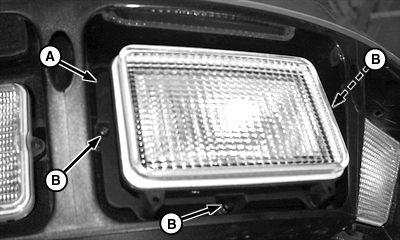

Install light assembly (A) onto cab roof and retain with adjusting screws (B).

NOTE: The initial adjustment of the light should begin with the top surface of the adjusting screws flush with flat surface of the fascia.

Continue adjustment until desired position is achieved.

A-Light Assembly
B-Adjusting Screws

OUO6075,00036A6 -19-29APR04-6/6
