Combine Safety Features

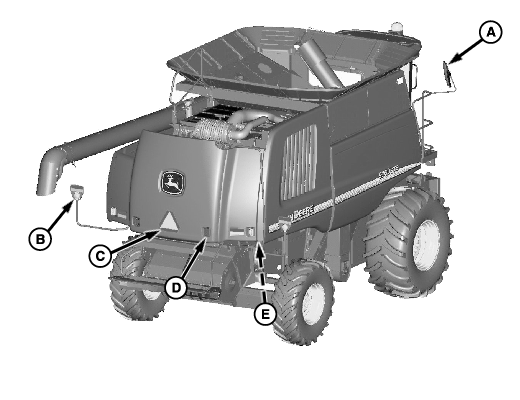

A-Rear View Mirrors B-Warning Lights and Reflective Tape

C-Slow Moving Vehicle Emblem

D-Tail Lights

E-Slip Resistant Service Platform with Handrails

In addition to the safety features shown here, other components and systems, safety lights on the machine, and safety messages and instructions in the operator's manual contribute to the safe operation of

this combine when combined with the care and concern of a capable operator.

OUO6075,0003797 -19-24MAY04-1/2

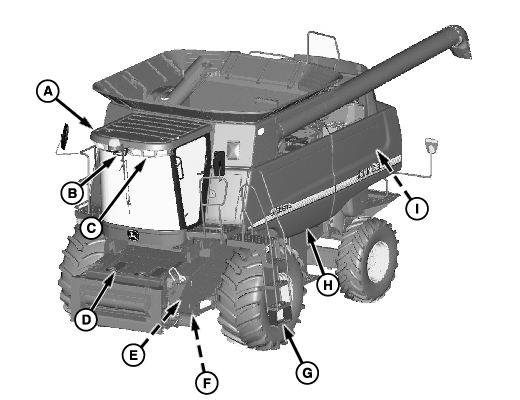

A-Cab Safety Features: Operator's Presence System, Electronic Engine Start Lockout, Seat Belts, Horn, Emergency Exit Window, Parking Brake, Turn Signals

B-Hand Holds C-Head Lights D-Slip Resistant Skid Mats E-Safety Decals

F-Mechanical Safety Stop (Feeder House) G-Slip Resistant Steps and Platform with Handrails

H-Shields I-Back-Up Alarm

OUO6075,0003797 -19-24MAY04-2/2
