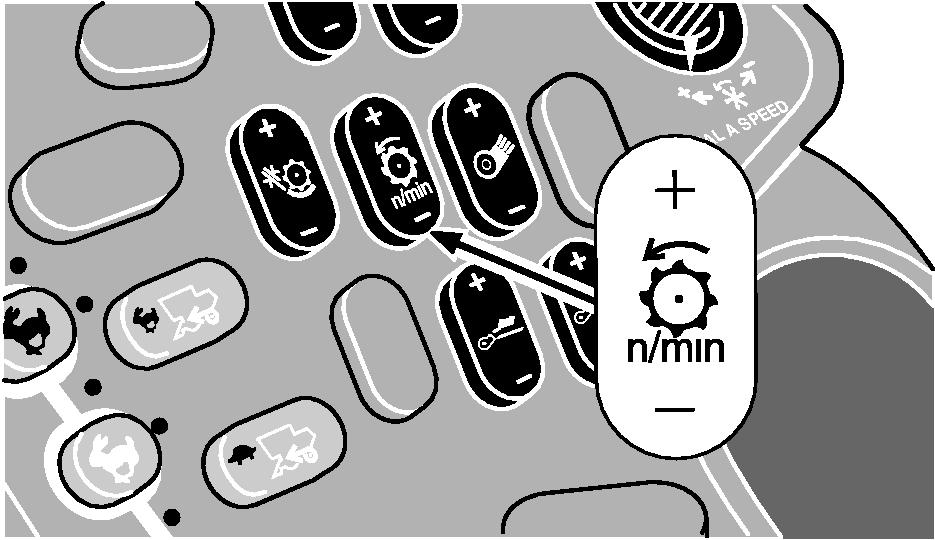

Single Tine Separator Speed Switch (Black)

STS speed switch controls the separator rpm. Separator must be engaged to adjust speed.

To increase separator speed, press and hold (+) symbol or press and hold (-) symbol to decrease separator speed. Separator rpm will be displayed on cornerpost tachometer.

Separator speed switch resets the tachometer for the low speed alarm in the overhead warning display panel. Whenever the separator speed is changed the alarm is also rest. Separator speed may increase about 30 rpm over four hours. Adjust separator speed as needed.

OUO6075,00037A2 -19-24MAY04-1/1
