Feeder House Slip Clutch (9660 STS and 9760 STS)

causym CAUTION: Shut OFF engine, set parking brake and remove key.

The slip clutch protects the upper shaft, conveyor, and drive chains.

If the slip clutch is removed, tighten flange nut (A) and lock nut (B) to specification.

Specification

Flange and Lock Nuts -Torque 350 N·m (258 lb-ft)

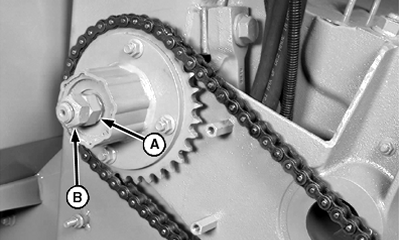

H68182

Shield Removed for Clarity


A-Flange Nut
B-Lock Nut

OUO6075,00037E1 -19-26MAY04-1/1
