Feeder House Variable Speed-Belt Replacement

CAUTION: Lower variable sheave is under spring tension; if belt is removed, it will snap back to a closed position.

Run feeder house to close lower variable sheave.

CAUTION: Shut OFF engine, set parking brake and remove key.

Lower safety stop and remove both shields on left-hand side.

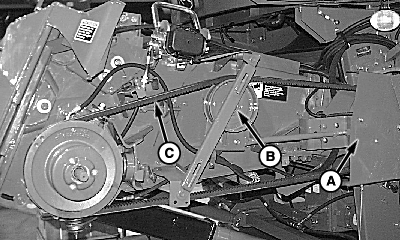

Remove drive sheave shield (A).

Loosen idler nut (B) to relieve belt tension and remove belt (C) from sheaves.

Install new belt and adjust tension. (See Adjusting Variable Speed Feeder House Belt).

A-Shield
B-Nut
C-Belt
