Feed Accelerator-Wing Replacement

causym CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: Wings can be reversed for additional wear.

Feed accelerator wings (A) can be replaced without removing accelerator. Replace accelerator wings in a set of two and opposite of each other on the accelerator to maintain proper balance.

NOTE: If accelerator is removed from combine, or has loosened clamp cap screws, tighten clamp cap screws before tightening wing cap screws.

Tighten cap screws to specification.

Remove hardware from wing and remove wing.

Replace wing and tighten nuts or cap screws to specification.

Remove and replace wear strips as required. Tighten cap screws to specification.

Specification

Cap Screws -Torque 70 N·m (52 lb-ft)

H75318

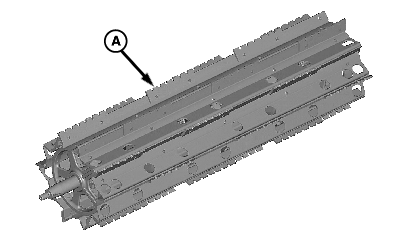

9560 STS, 9660 STS, 9760 STS Feed Accelerator Wing (Standard)

H75317

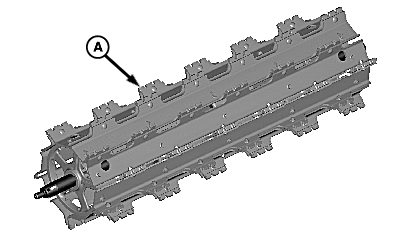

9660 STS and 9760 STS Feed Accelerator Wings (Rice Machines)


A-Feed Accelerator Wings
