Feed Accelerator Standard Speed-Changing

NOTE: When changing separator speeds make sure to cycle power ON and OFF. Combine will now recognize the new speed range.

To change feed accelerator speed to high speed position:

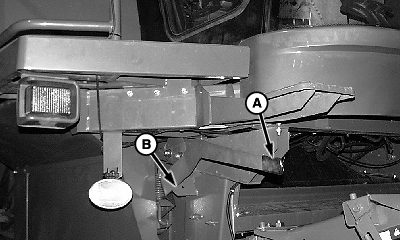

  • Remove belt tension by pushing lever (A) up and out from notch in bracket (B).

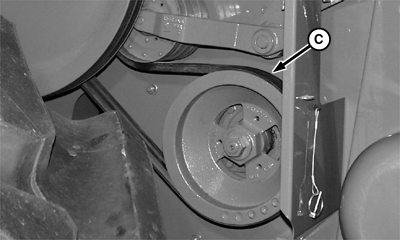

  • Move belt (C) to inside sheave grooves on both sheaves for high speed.
  • Push lever up and into notch in bracket to reset belt tension.


A-Lever
B-Notch in Bracket
C-Belt

H74782
H62146

OUO6075,00037EF -19-26MAY04-1/1
