Spreader to Windrow Position

CAUTION: Shut OFF engine, set parking brake and remove key. Before performing service or maintenance on raised spreader, fully insert lock-out pin into place.

Spreader can be rotated upward into windrow position to allow material to discharge into a windrow.

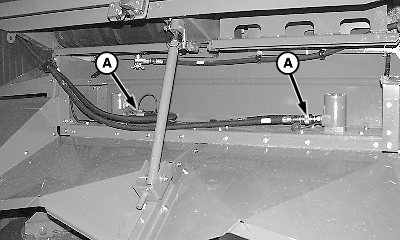

Disconnect hydraulic hoses (A) from spreader and install dust caps.

A-Hydraulic Hoses

OUO6075,0003824 -19-27MAY04-1/3

IMPORTANT: Connect hydraulic hoses together.

Remove quick-lock pin (A).

Hold onto tube (B) and remove pin (C). Lower tube forward.

A-Quick-Lock Pin
B-Tube
C-Pin

OUO6075,0003824 -19-27MAY04-2/3

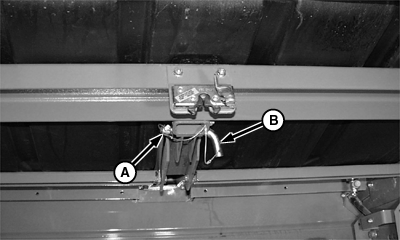

Place pin (B) back into storage position and retain with quick-lock pin (A).

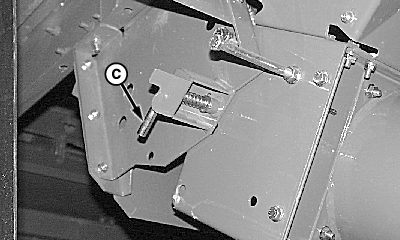

CAUTION: Before performing service or maintenance on raised spreader, fully insert lock-out pin (C) into place.

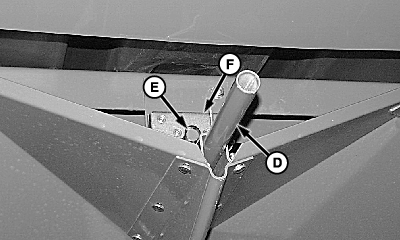

Using handle (D), raise spreader until pin (E) is fully engaged in latch assembly (F).

A-Quick-Lock
B-Pin
C-Pin
D-Handle
E-Pin
F-Latch Assembly

OUO6075,0003824 -19-27MAY04-3/3
