Spreader Disk Assemblies

Spreader disk assemblies can be removed for service or to provide additional clearance under spreader.

CAUTION: Disk assemblies weigh approximately 20 kg (44 lb) (9560 STS), 25 kg (55 lb) (9660 STS and 9760 STS).

IMPORTANT: Disk assemblies are left-handed and right-handed. In order to assure correct re-installation, mark disk assemblies before removal.

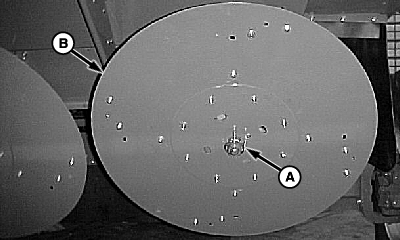

Remove quick-lock pins (A) from spreader shafts and remove disk assemblies (B).

A-Quick-Lock Pins
B-Disk Assembly

OUO6075,0003826 -19-27MAY04-1/1
