Grain Tank Full Indicator

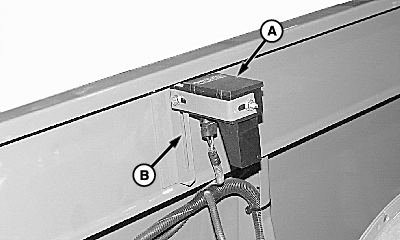

Sensor (A) is located on the right of grain tank extension. Grain tank sensor will turn ON a green indicator light in the overhead warning display and a buzzer will sound until the sensor is de-activated.

Green indicator light will turn on immediately, but a delay of two second delay will occur between the tripping of the sensor and the buzzer sounding.

Header drive must be engaged for buzzer to sound.

CAUTION: Shut OFF engine, set parking brake and remove key.

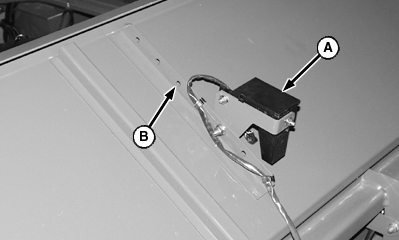

Adjust sensor by moving it up or down in slot (9560 STS) or holes (9660 STS and 9760 STS) (B). This adjusts the switch "trip" point. The higher the sensor is moved up in the slot or holes, the fuller the grain tank will be at the time the buzzer sounds.

If greater grain tank fill is desired, the mounting bracket can be turned over.

IMPORTANT: When bracket is reversed, the bracket will be above the grain tank extension

A-Sensor
B-Slot or Holes

OUO6075,000382A -19-27MAY04-1/1
