Unloading Auger Drive Shear Bolt

CAUTION: Shut OFF engine, set parking brake and remove key.

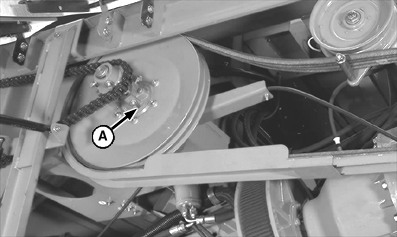

Use only a M8 x 60 class 8.8 cap screw as a shear bolt (A) (cap screw through the hub) (John Deere part 19M7185).

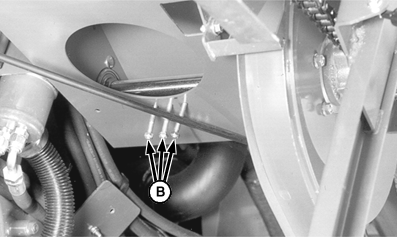

Three extra shear bolts (B) are provided to the right of the drive below the countershaft.

IMPORTANT: Do not install a tire inner tube or a sack to end of unloading auger. Any restriction at end of auger can cause damage to unloading auger system and could cause shear bolt failure.

A-Shear Bolt
B-Extra Shear Bolts
