Hydrostatic/Hydraulic Oil Level

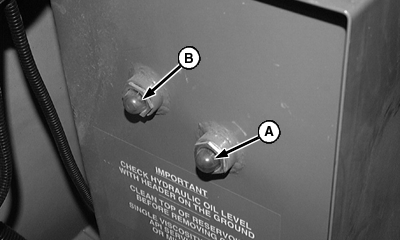

Check hydrostatic/hydraulic oil level with header on ground and all cylinders retracted. Oil must cover sight glass (A) and be below top of sight glass (B). Add oil as needed. Do not overfill.

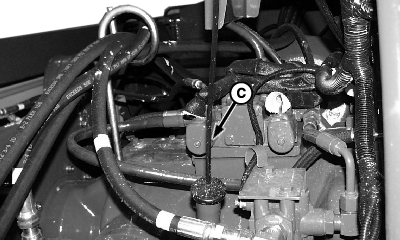

Shut OFF engine, set parking brake and remove key before checking hydraulic oil at engine gear case. Oil must not be below the low mark on dipstick (C). Do not overfill.


A-Sight Glass
B-Sight Glass
C-Dipstick

H54081
H72676

Hydraulic Oil Level (Engine Gear Case)
