Fuel Tank-Draining

causym CAUTION: Shut OFF engine, set parking brake and remove key before performing maintenance work.

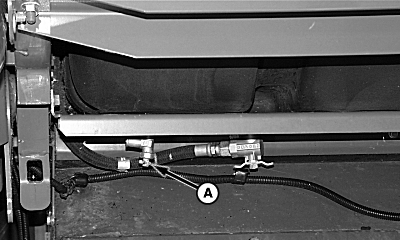

Drain valve (A) at bottom of fuel tank is used for draining. Close finger tight.

Use a clean container when draining to see if fuel is dirty.


A-Valve

H66349

OUO6075,000384D -19-28MAY04-1/1
