Engine Accessory/Fan Drive Belt-Replacing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

1. Loosen nut (A) and remove rotary screen drive belt (B).


A-Nut
B-Rotary Screen Drive Belt

H54650

OUO6075,0003852 -19-28MAY04-1/3

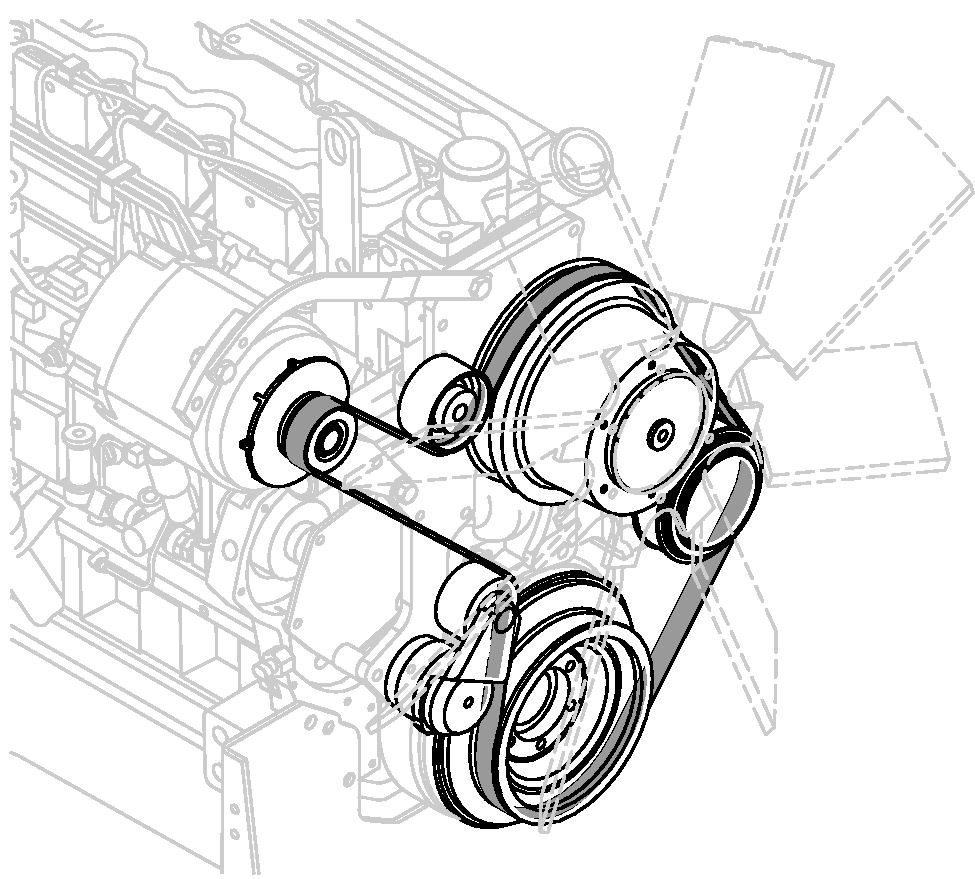

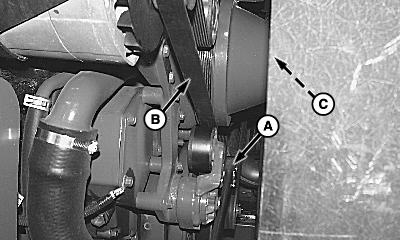

2. Insert breaker bar (A) into square hole on tensioner arm to release belt tension on engine accessory drive belt.

3. Remove belt (B) from engine. Work belt over fan (C) and remove belt.


A-Breaker Bar
B-Belt
C-Fan

H73127
H57453

OUO6075,0003852 -19-28MAY04-2/3

4. Install new belt (B) in reverse order.

5. Tighten nut (A) until gauge aligns with end of spring.


A-Nut
B-Belt

H54650

OUO6075,0003852 -19-28MAY04-3/3
