Crop Settings and Configuration Recommendations (9560 STS)

NOTE: Some of these settings are on the fold out card in the storage area behind the operator's seat.

Settings for various crops are for average conditions. Varying crop and field conditions may require slightly different settings.

OUO6075,0003859 -19-28MAY04-1/3

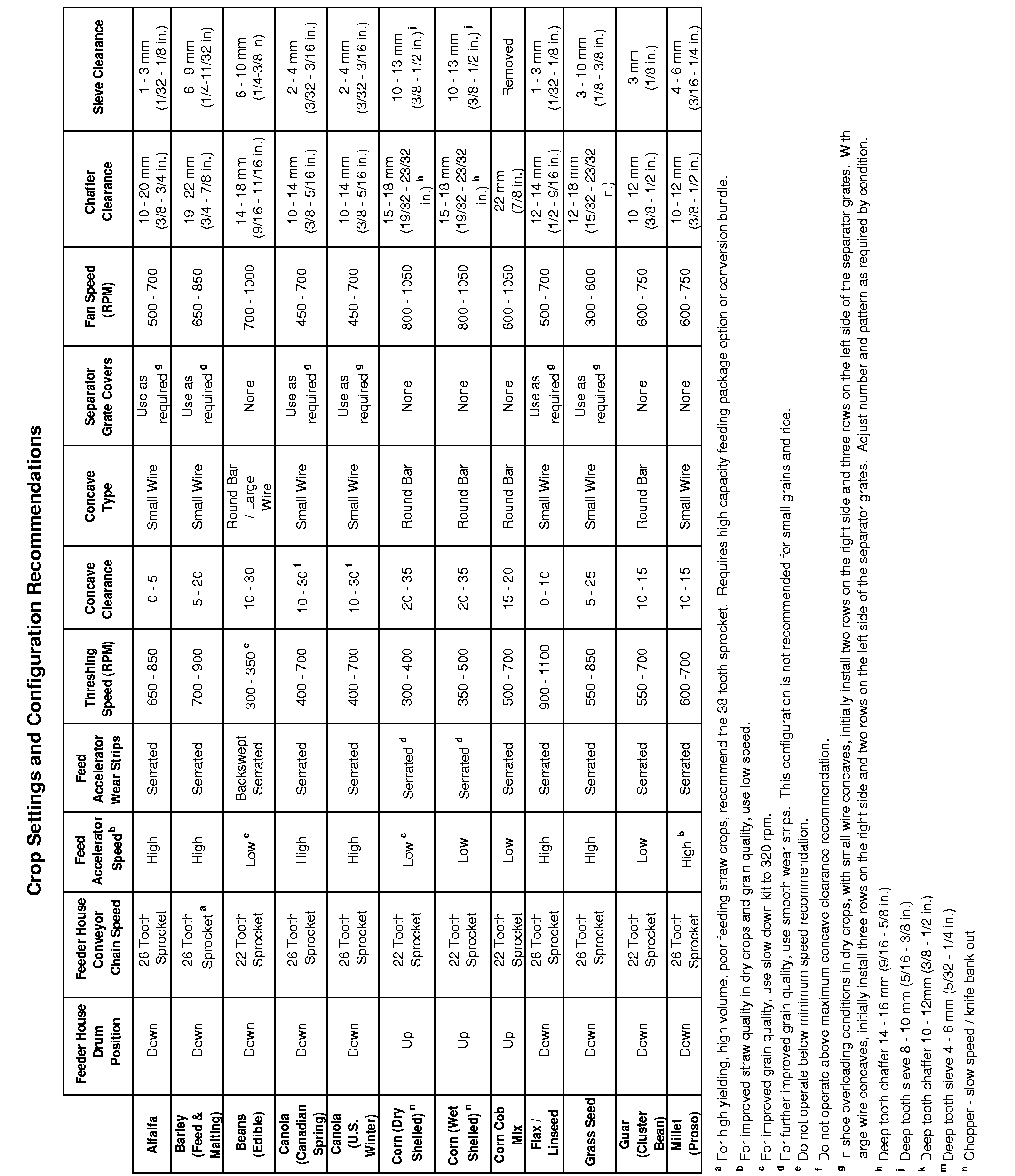

H78634

OUO6075,0003859 -19-28MAY04-2/3

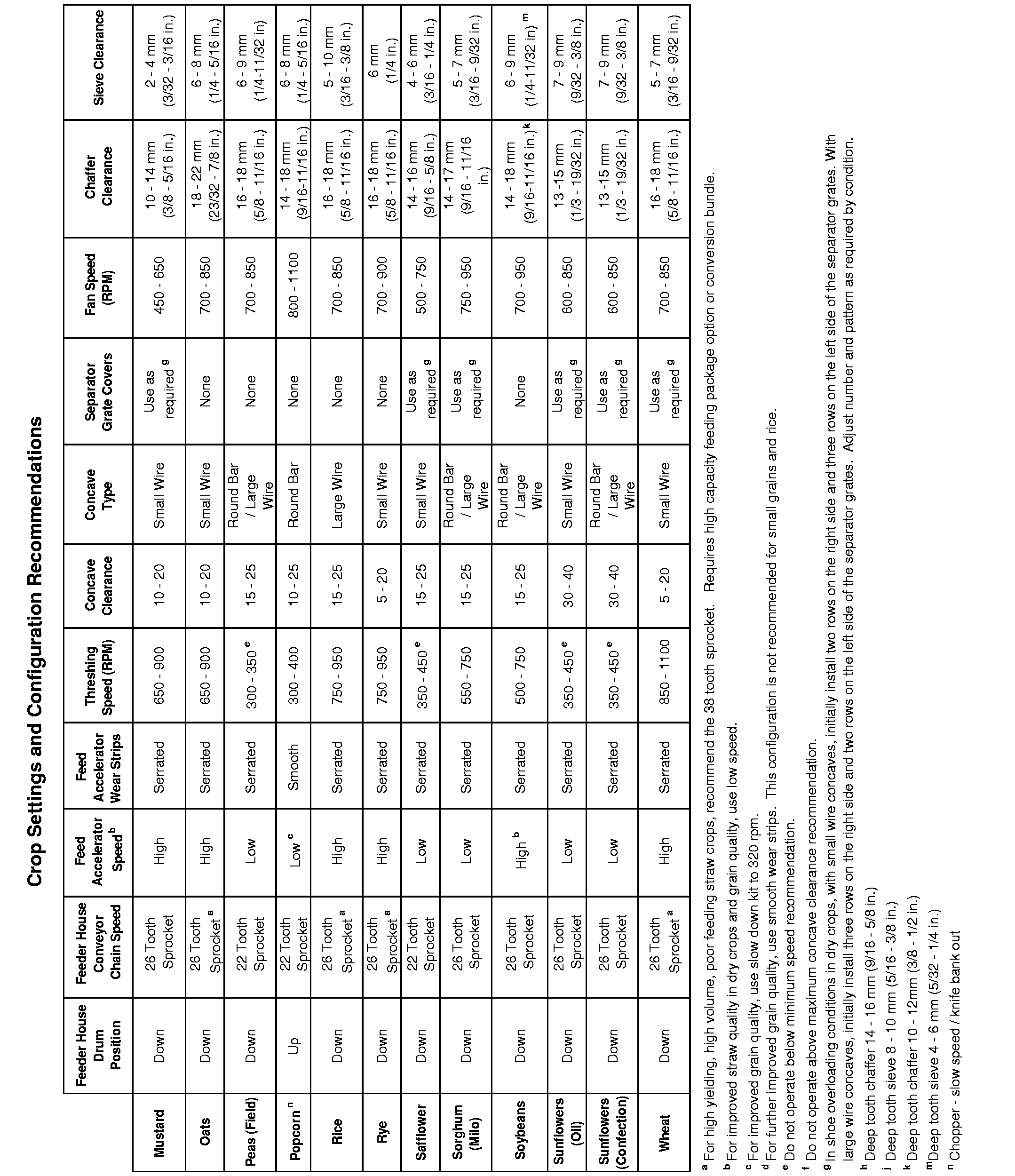

H80033

OUO6075,0003859 -19-28MAY04-3/3
