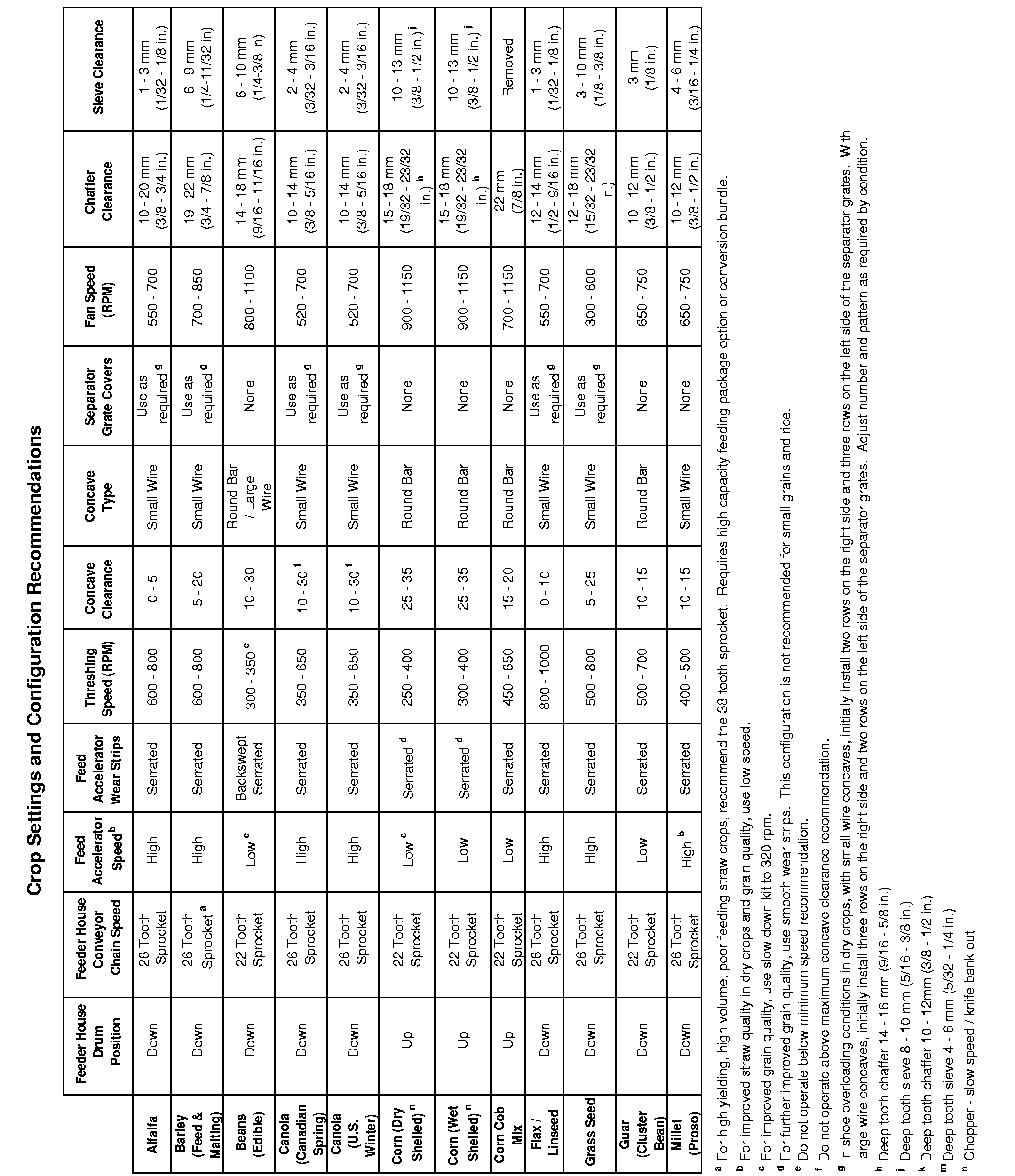

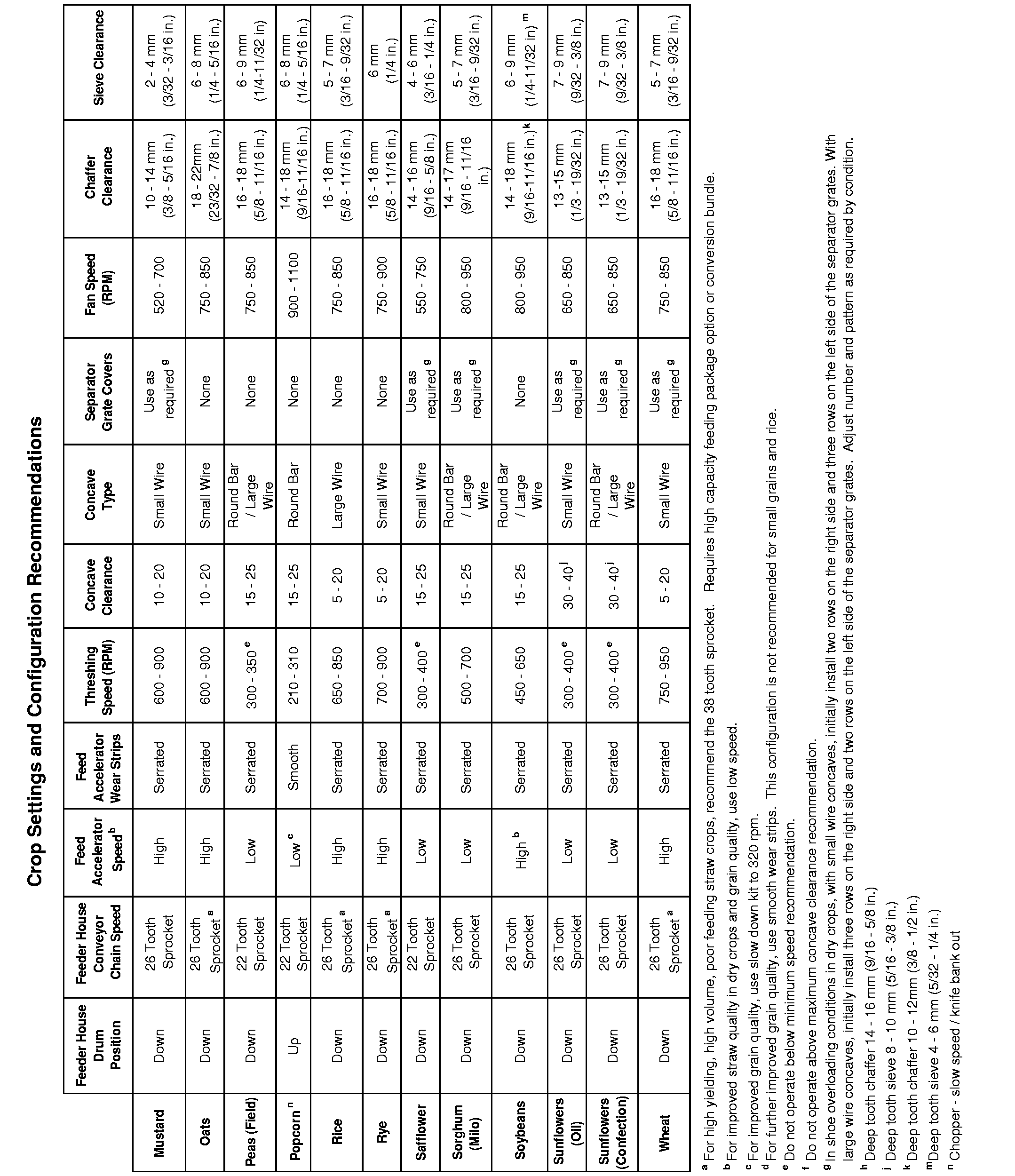

Crop Settings and Configuration Recommendations (9660 STS and 9760 STS)

NOTE: Some of these settings are on the fold out card in the storage area behind the operator's seat.

Settings for various crops are for average conditions. Varying crop and field conditions may require slightly different settings.

OUO6075,000385A -19-17JUN04-1/3

H78635

OUO6075,000385A -19-17JUN04-2/3

H75006

OUO6075,000385A -19-17JUN04-3/3
