Lubrication Decal Locations

These lubrication decals (A) show the different locations of the grease points around the combine. Follow the lubrication times provided on the decals and refer to the hour intervals listed in this section for further information.


A-Lubrication Decals

H80953

Left-Hand Lubrication Decal

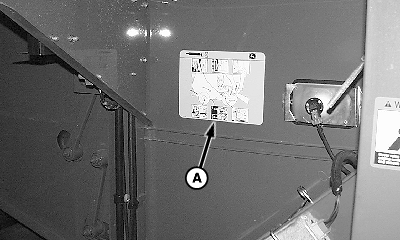

H80954

Right-Hand Rear Lubrication Decal

OUO6075,0003863 -19-10JUN04-1/1
