IMPORTANT: Service times are for average conditions. Service more often if combine is used in extreme conditions.

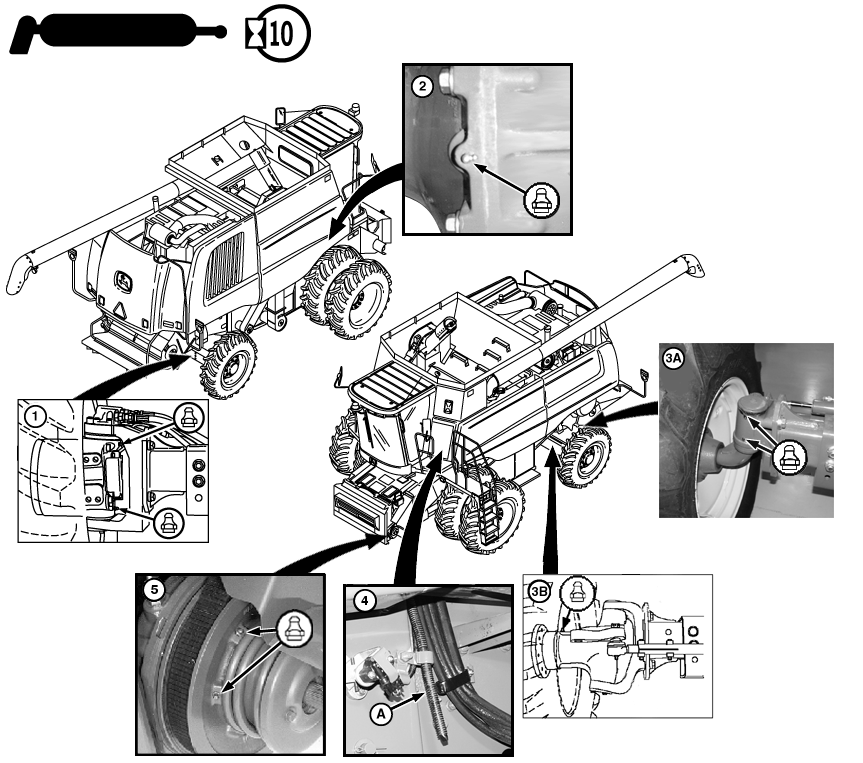

1. Motor Pivots Two Speed Four Wheel Drive - Grease two fittings (both sides).

2. Final Drive Outer Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. In normal conditions grease fitting (both sides) every 50 hours.

OUO6075,0003864 -19-14JUN04-1/2

NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots every 10 hours. In normal conditions grease every 50 hours.

Grease rear hubs until grease purges from inner seal.

3. Rear Axle Spindles

a. Regular Duty Axle Spindle Bearings (9560 STS) - When operating in mud and water, grease fittings (both sides) every 10 hours. In normal conditions grease fittings (both sides) every 50 hours.

b. Heavy Duty Axle Spindle Bearings (9560 STS, 9660 STS, 9760 STS) - When operating in mud

4. Air Conditioning Drain Hose- Clean air conditioning drain hose (A).

NOTE: Use John Deere TY6341 type grease.

5. Feeder House Reverser Drive Gear Case - When operating in severe conditions or high yielding corn, grease each fitting (2 - 3 times) every 10 hours. When operating in normal conditions, grease each fitting (10 - 15 times) every 50 hours.

After greasing, cycle variable sheave through speed range a couple of times to insure grease is spread evenly over cam surfaces.

OUO6075,0003864 -19-14JUN04-2/2
