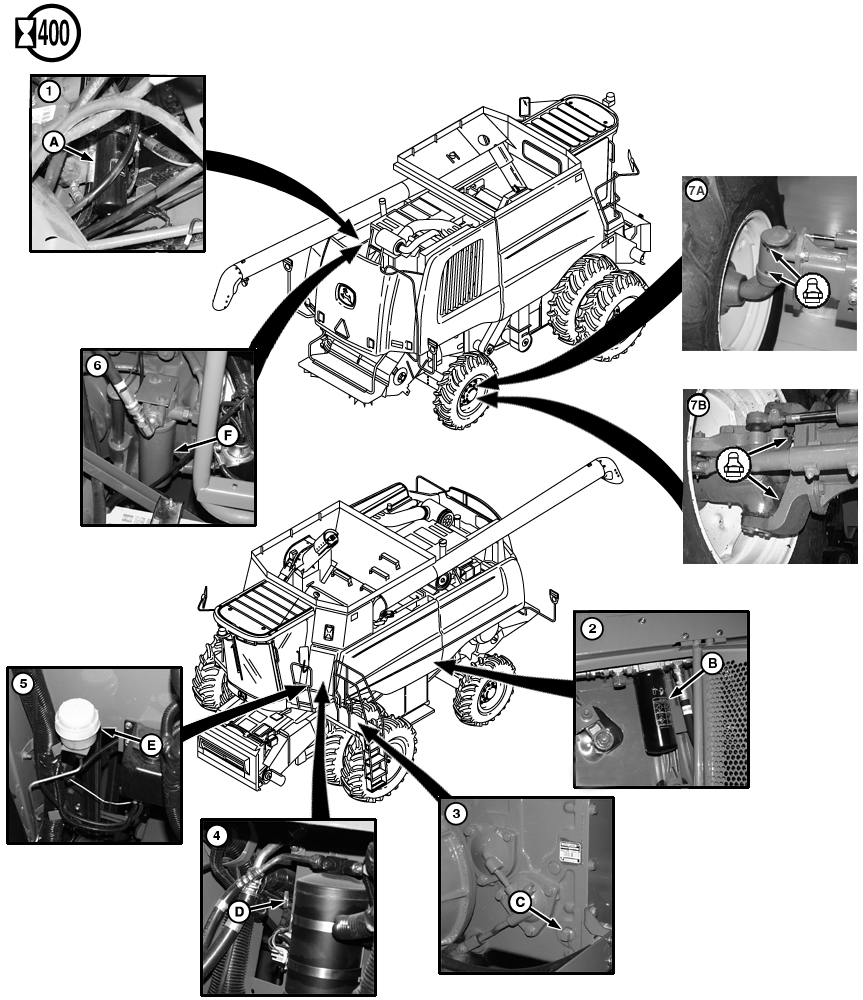

A-Hydraulic/Hydrostatic Filter
B-Hydrostatic Charge Filter

C-Plug
D-Dipstick

E-Brake Fluid Reservoir Cap

F-Engine PTO Gear Case Filter

OUO6075,000386E -19-03JUN04-1/2

NOTE: It is not necessary to drain system when installing filters.

2. Hydrostatic Charge Filter - Replace hydrostatic charge filter (B). Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

3. Transmission - Remove plug (C) and check oil level. Add oil as needed to within 12 mm (1/2 in.) of bottom of hole.

4. Primary Countershaft Gear Case - Check primary countershaft gear case oil level with dipstick (D). Add oil as needed.

5. Brake Fluid - Check brake fluid level. Look through cap (E). Add brake fluid to 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

6. Engine PTO Gear Case - Replace engine gear case filter (F). Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

7. Rear Axle Spindles

a. Regular Duty Axle Spindle Bearings (9560 STS) - When operating in mud and water, grease fittings (both sides) every 10 hours. In normal conditions grease fittings (both sides) every 50 hours.

b. Heavy Duty Axle Spindle Bearings (9560 STS, 9660 STS, 9760 STS) - When operating in mud and water, grease fitting (both sides) every 10 hours. In normal conditions grease fitting (both sides) every 50 hours.

OUO6075,000386E -19-03JUN04-2/2
