Every 2000 Hours

H75861

OUO6075,0003873 -19-01JUN04-1/2


A-Cap
B-Cap
C-Lower Sight Glass
D-Upper Sight Glass
E-Drain Plug


F-Fill Plug
G-Check Hole
H-Drain Plugs
I-Dipstick


J-Protective Cap
K-Drain Valve
L-Dipstick
M-Cap


N-Dipstick
O-Tube
P-Block
Q-Check Plug

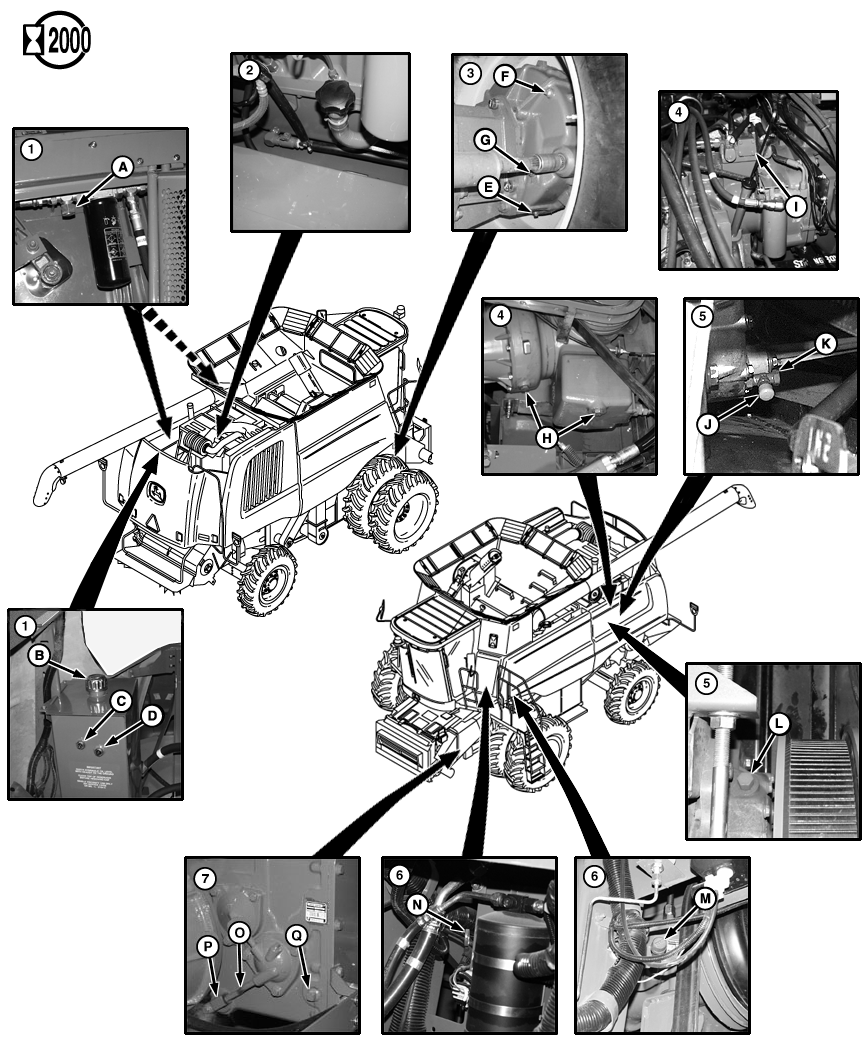

1. Hydraulic/Hydrostatic Reservoir - Remove cap (A) to drain. Clean screen and cap (B) and refill. Oil must show above lower sight glass (C) and below upper sight glass (D).

2. Engine Valve Back Lash - After 2000 hours of operation have engine valve back lash checked and adjusted if necessary, by your John Deere dealer.

3. Final Drives (both sides) - Remove drain plug (E) to drain. Remove fill plug (F) to refill until oil level is within 12 mm (1/2 in.) of bottom check hole (G).

4. Engine PTO gear Case Oil - Drain at plugs (H) Refill and check oil level at dipstick (I).

5. STS Two Speed Drive - Remove protective cap (J) and attach drain hose to drain valve (K). Open valve to drain. Refill at dipstick (L) as needed.

6. Primary Countershaft Gear Case - Drain at cap (M) and refill at dipstick (N). Oil level must show on knurled part of dipstick.

7. Transmission - Slide tube (O) out of block (P). Remove block to drain. Remove check plug (Q) and refill to within 12 mm (1/2 in.) of hole.
