Chaffer Calibration (Optional)-Component Replacement
This procedure must be used when the actuator or chaffer element is replaced or if the components are removed.
NOTE:
Element play will prevent correct calibration if the chaffer is not closed first, then opened to 5 mm (3/16 in.).
Use remote chaffer adjust switch (located on left-hand side of machine) or actuator manual adjustment knob to fully close, then open chaffer to 5 mm (3/16 in.).
|
|
|
|
OUO6075,000388C -19-01JUN04-1/13
|
|
Press diagnostic button. dIA will be displayed.
|
|
|
|
OUO6075,000388C -19-01JUN04-2/13
|
|
Press up arrow button until C03 is displayed.
|
|
|
|
OUO6075,000388C -19-01JUN04-3/13
|
|
|
OUO6075,000388C -19-01JUN04-4/13
|
|
NOTE:
0221 is for standard chaffer elements and 0331 is for deep tooth chaffer elements.
Press up arrow button until 132 is displayed. Confirm that the correct chaffer element numbers are displayed.
|
|
|
|
OUO6075,000388C -19-01JUN04-5/13
|
|
|
OUO6075,000388C -19-01JUN04-6/13
|
|
Press up or down arrow button until E04 is displayed.
|
|
|
|
OUO6075,000388C -19-01JUN04-7/13
|
|
|
OUO6075,000388C -19-01JUN04-8/13
|
|

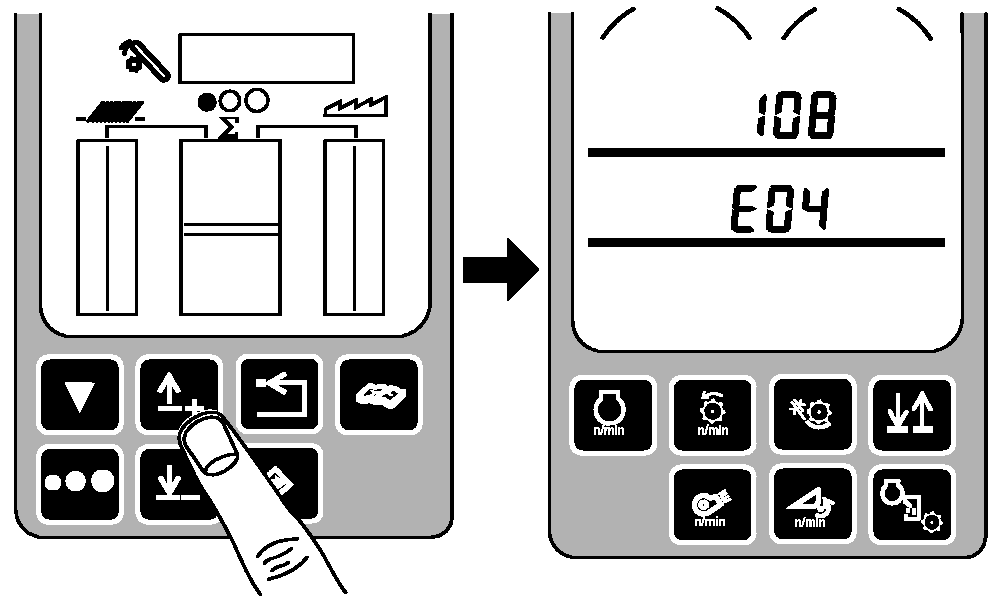

Press up or down arrow button until 108 is displayed.
|
|
|
|
OUO6075,000388C -19-01JUN04-9/13
|
|
Press enter button. OP5 will be displayed.
|
|
|
|
OUO6075,000388C -19-01JUN04-10/13
|
|
NOTE:
While HOLd is displayed the chaffer element is calibrating itself.
Press calibration button. HOLd will be displayed.
|
|
|
|
OUO6075,000388C -19-01JUN04-11/13
|
|
HOLd will change to EOC when calibration is complete.
|
|
|
|
OUO6075,000388C -19-01JUN04-12/13
|
|
EOC will be displayed when calibration is complete. Press enter button. Chaffer calibration is complete.
|
|
|
|
OUO6075,000388C -19-01JUN04-13/13
|
|
