Sieve Calibration (Optional)-Field Operation

IMPORTANT: Clear all debris from sieve before calibrating.

Sieve adjust motor and sieve elements are calibrated using this calibration procedure. Sieve calibration must be performed after manually adjusting the sieve motor or to restore system accuracy.

Prepare chaffer for calibration:

  • Turn key switch to "RUN" position or start combine

OUO6075,000388D -19-01JUN04-1/7

Press diagnostic button. dIA will be displayed.

H71445

OUO6075,000388D -19-01JUN04-2/7

Press calibration button. CAL and conc will be displayed.

H68151

OUO6075,000388D -19-01JUN04-3/7

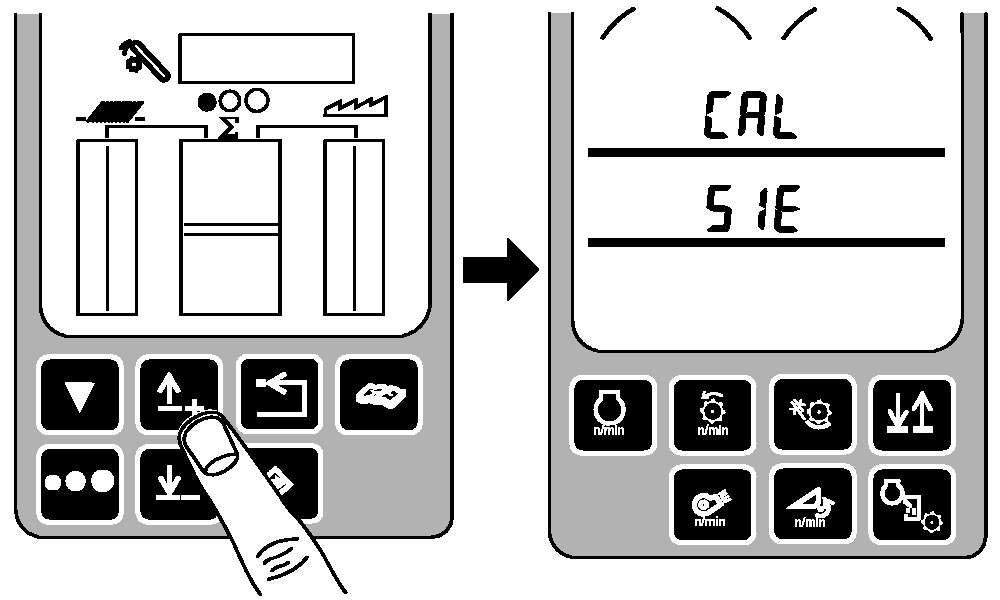

Press up or down arrow button until CAL and SIE appear.

H74830

OUO6075,000388D -19-01JUN04-4/7

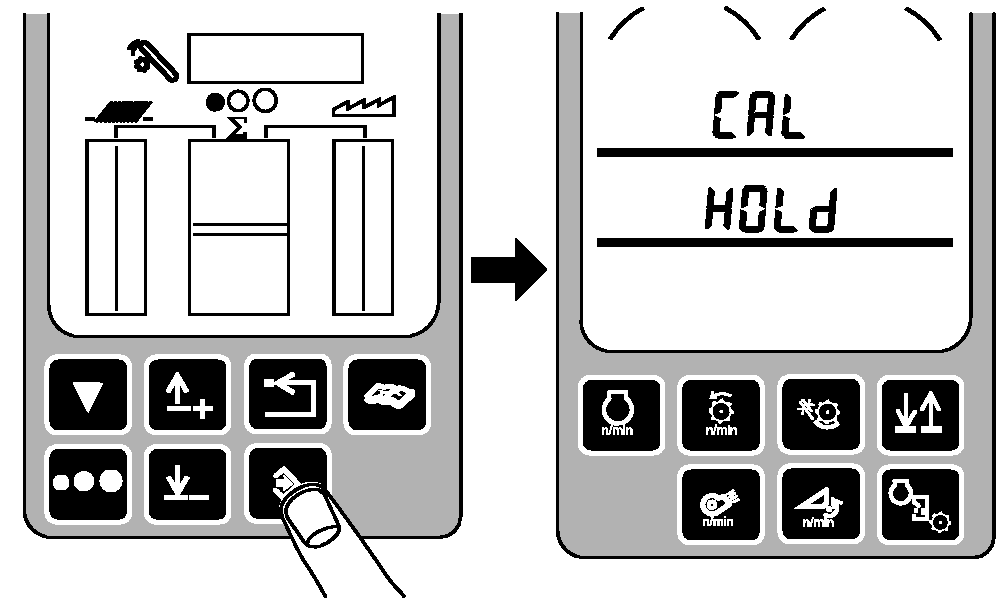

Press enter button.

NOTE: When HOLd is displayed the sieve is opening and closing automatically.

HOLd will be displayed on middle line of display.

H75313

OUO6075,000388D -19-01JUN04-5/7

HOLd will change to EOC when calibration is complete.

H74822

OUO6075,000388D -19-01JUN04-6/7

EOC will be displayed when calibration is complete. Press enter button. Sieve calibration is complete.

H68162

OUO6075,000388D -19-01JUN04-7/7
