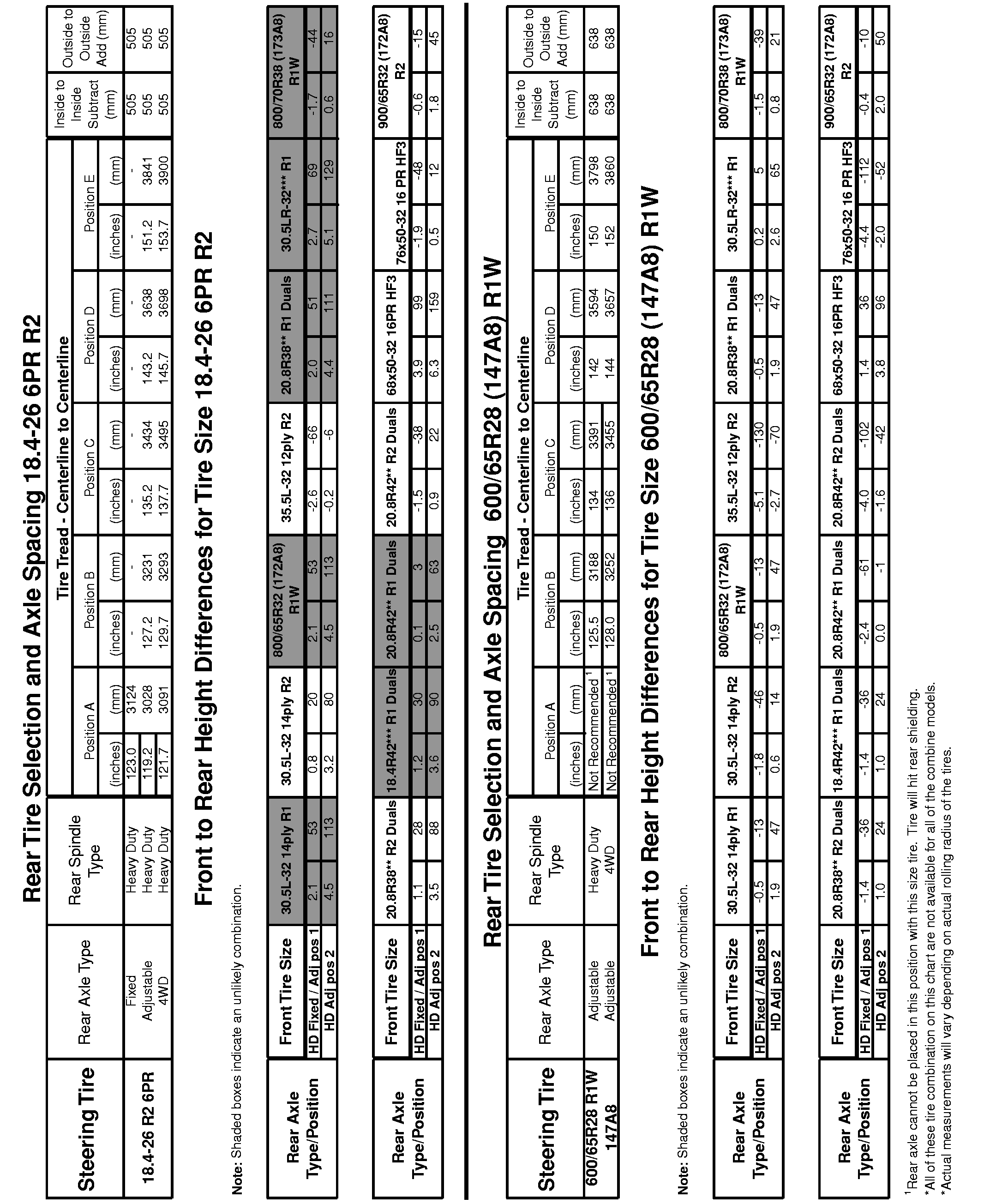

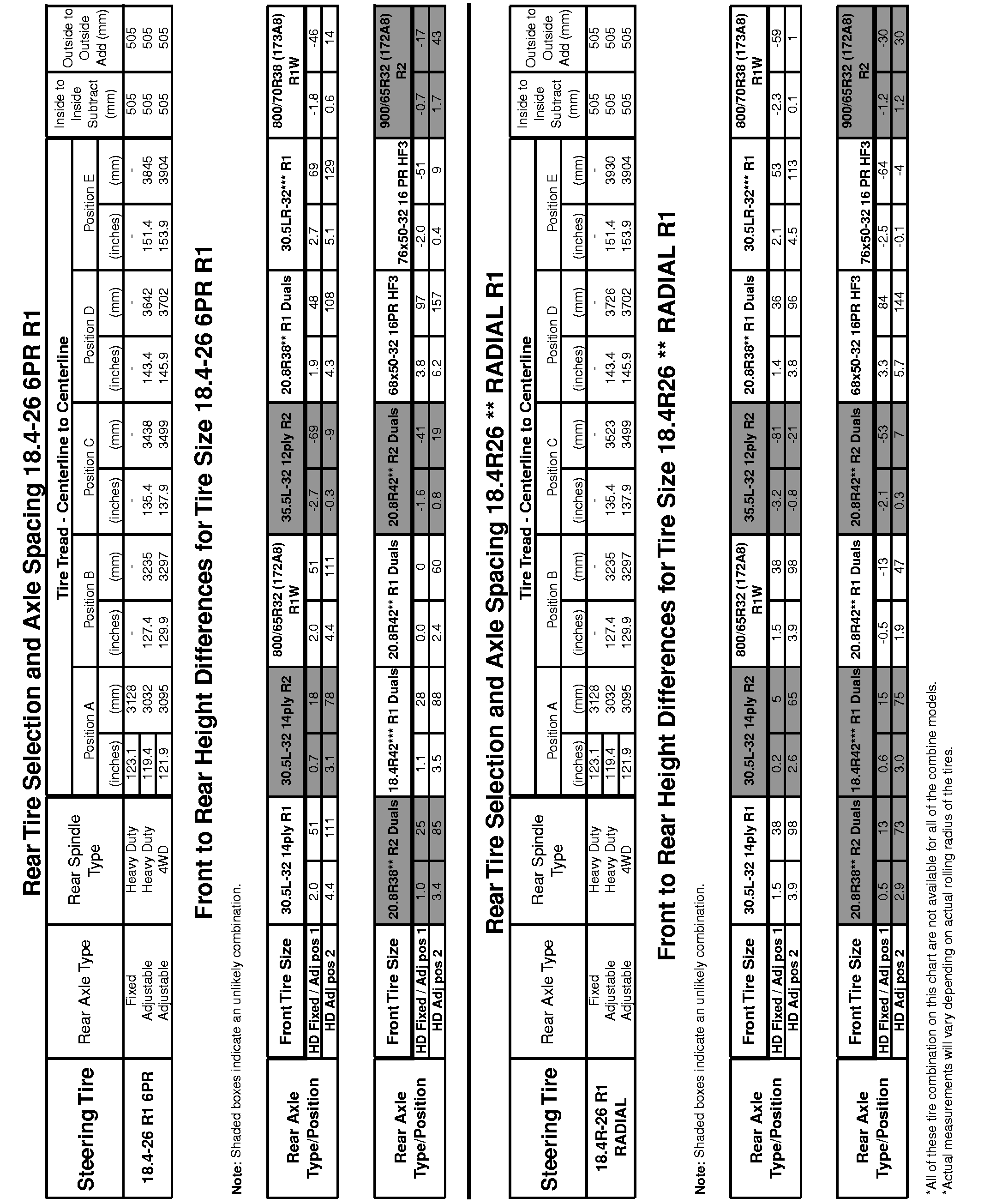

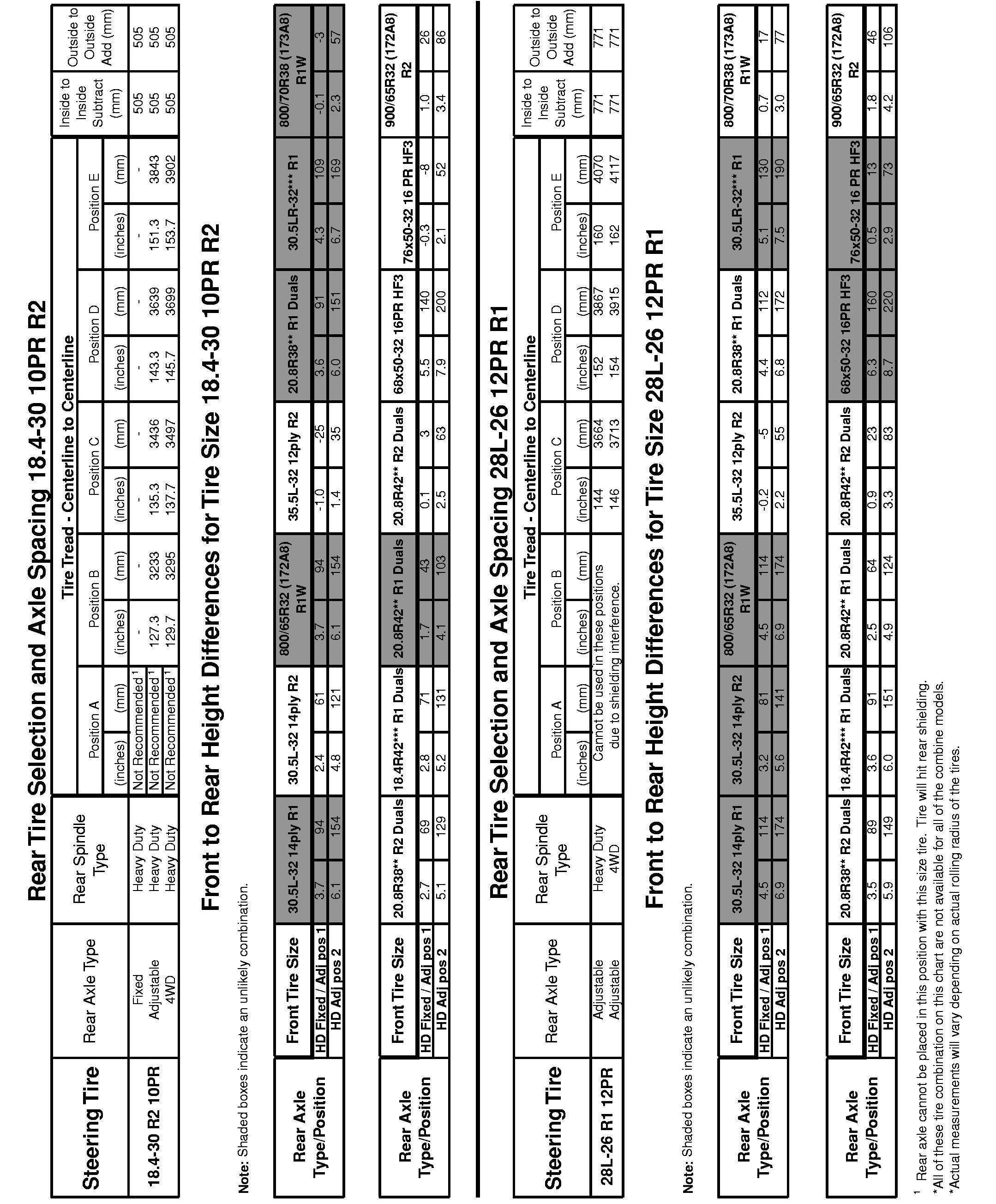

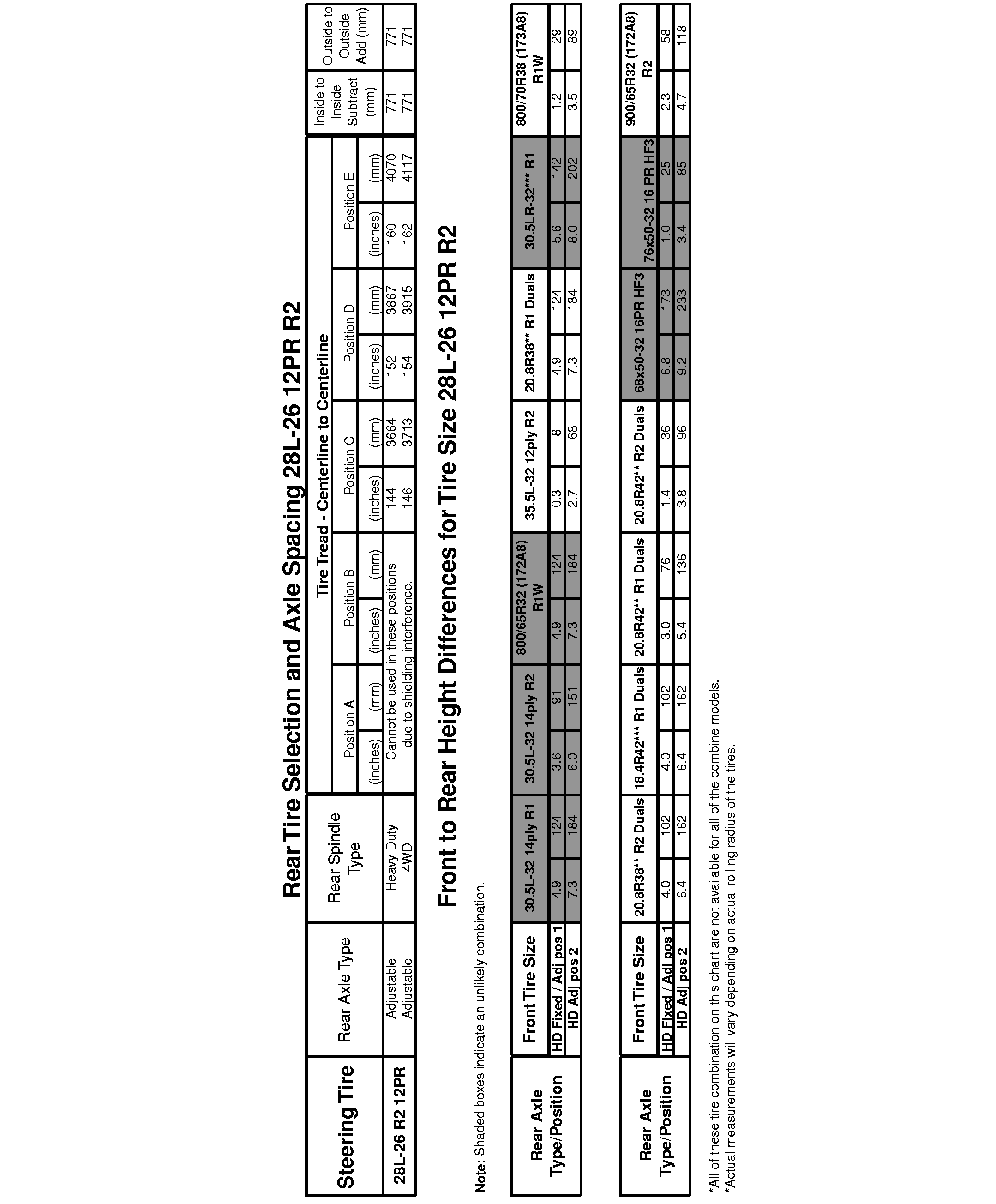

Rear Tire Selection, Tire Spacing, and Front to Rear Tire Compatibility Charts
Standard Rear Axle Position 1
|
High Clearance Rear Axle Position 2
|

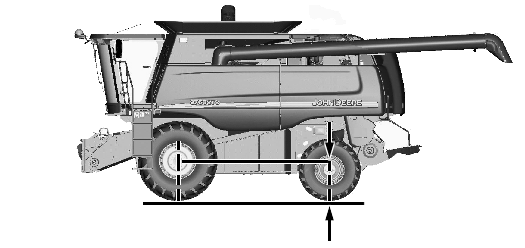

Arrows Show Front to Rear Height Difference

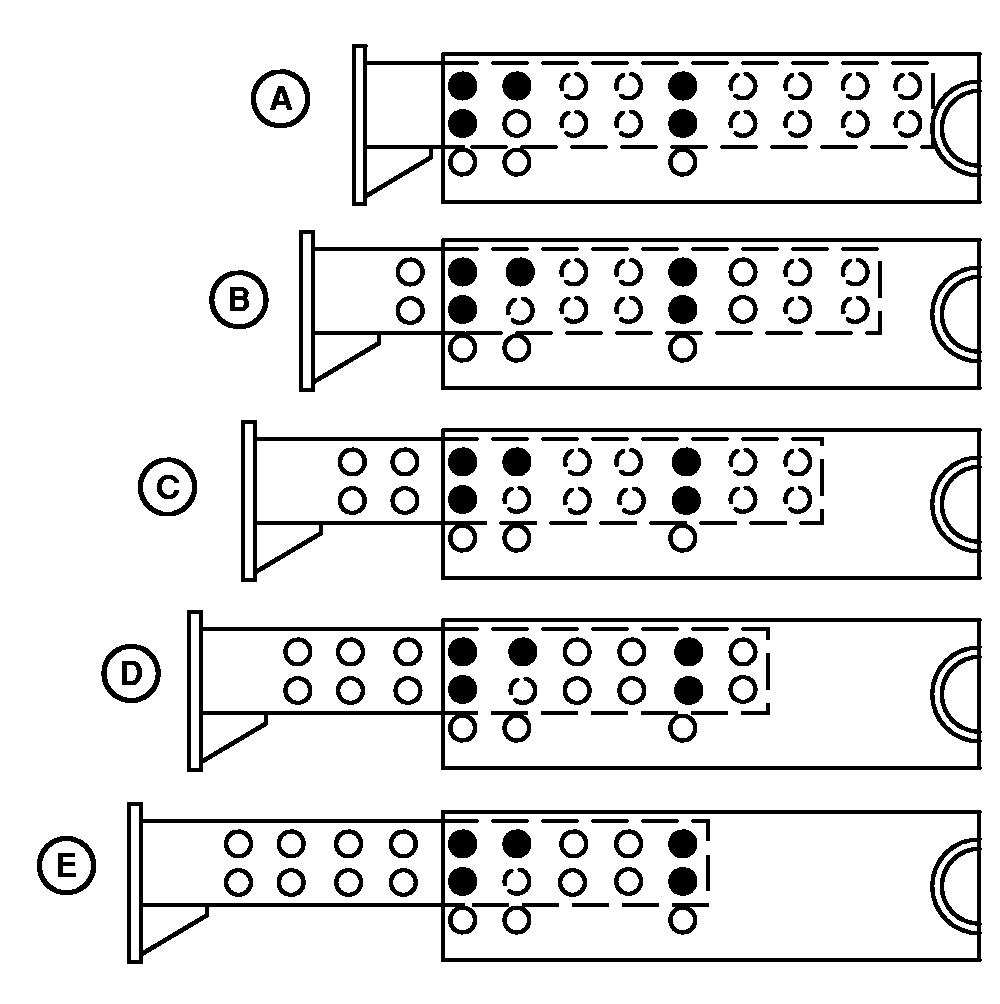

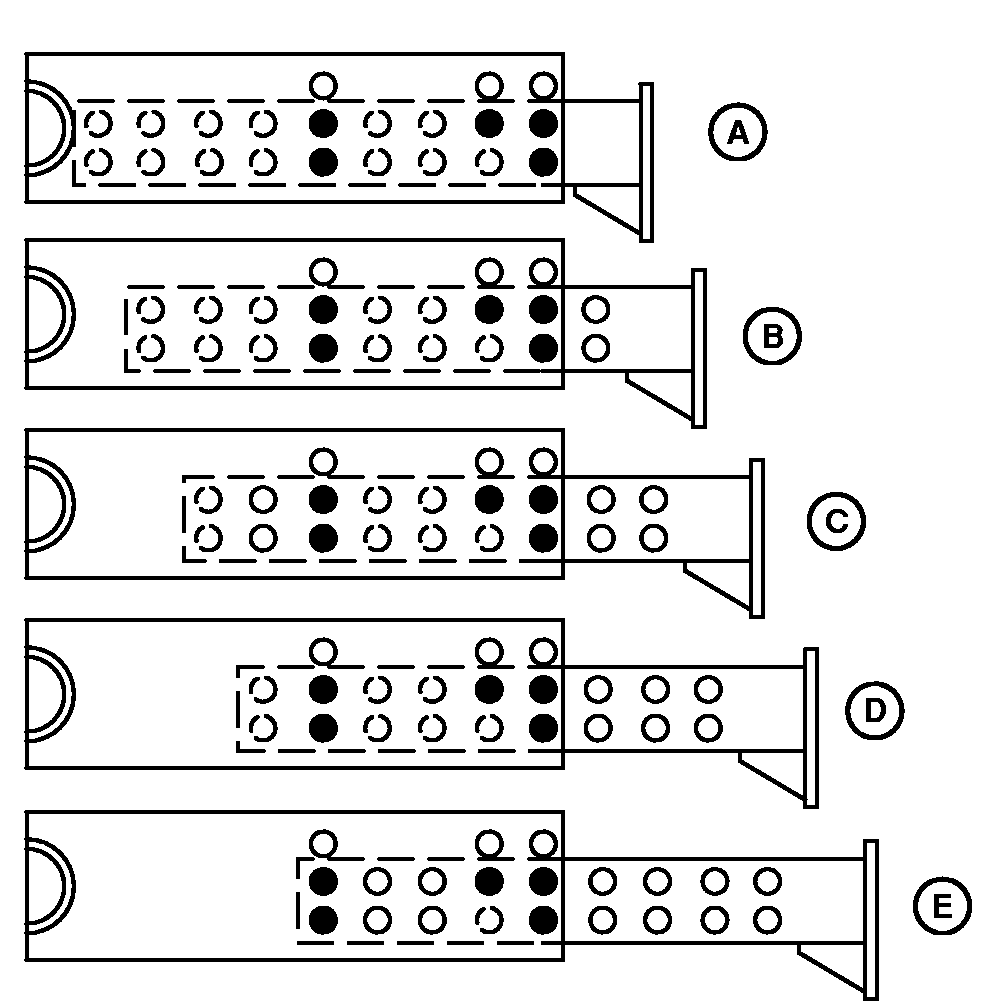

A-Position A
B-Position B
|
C-Position C
|
D-Position D
|
E-Position E
|
|
NOTE:
Arrows show height difference between front and rear of machine. Positive values indicate
|
rear is higher than front, and negative values indicate front is higher than rear.
|
|
|
