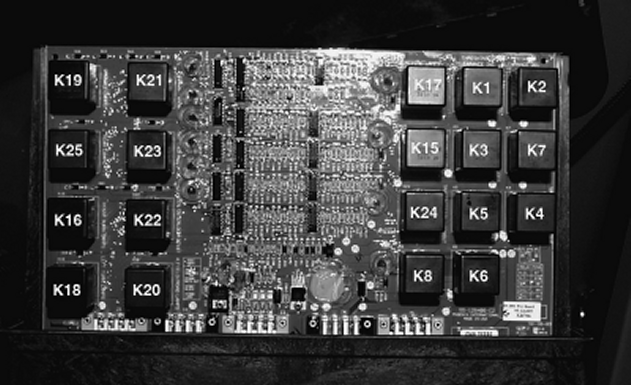

K1-Threshing Clearance Increase
K2-Threshing Clearance Decrease
K3-Vane Angle Adjust Left
K4-Vane Angle Adjust Right
|
K5-Fan Speed Increase
K6-Fan Speed Decrease
K7-Grain Tank Cover Fold
K8-Grain Tank Cover Unfold
K15-Beacon Lamps
|
K16-Right Turn Lamps
K17-Driving Lamps
K18-Left Turn Lamps
K19-Stubble Lamps
K20-4 Field/Road Lamps
|
K21-2 Field Lamps
K22-Start Interlock
K23-Delayed Power CC6
K24-Transmission Lockout
K25-Rear Lamps
|
