Rear Tire Selection, Tire Spacing, and Front to Rear Tire Compatibility Charts
|
|
|
|
|
|
|
NOTE: Steering cylinder anchors may move if combine is turned while on cement. |
480/80R26 (160A8) R4
|
| 480/80R26 (160A8) R4 Rear Tire Selection and Axle Spacing | |||||

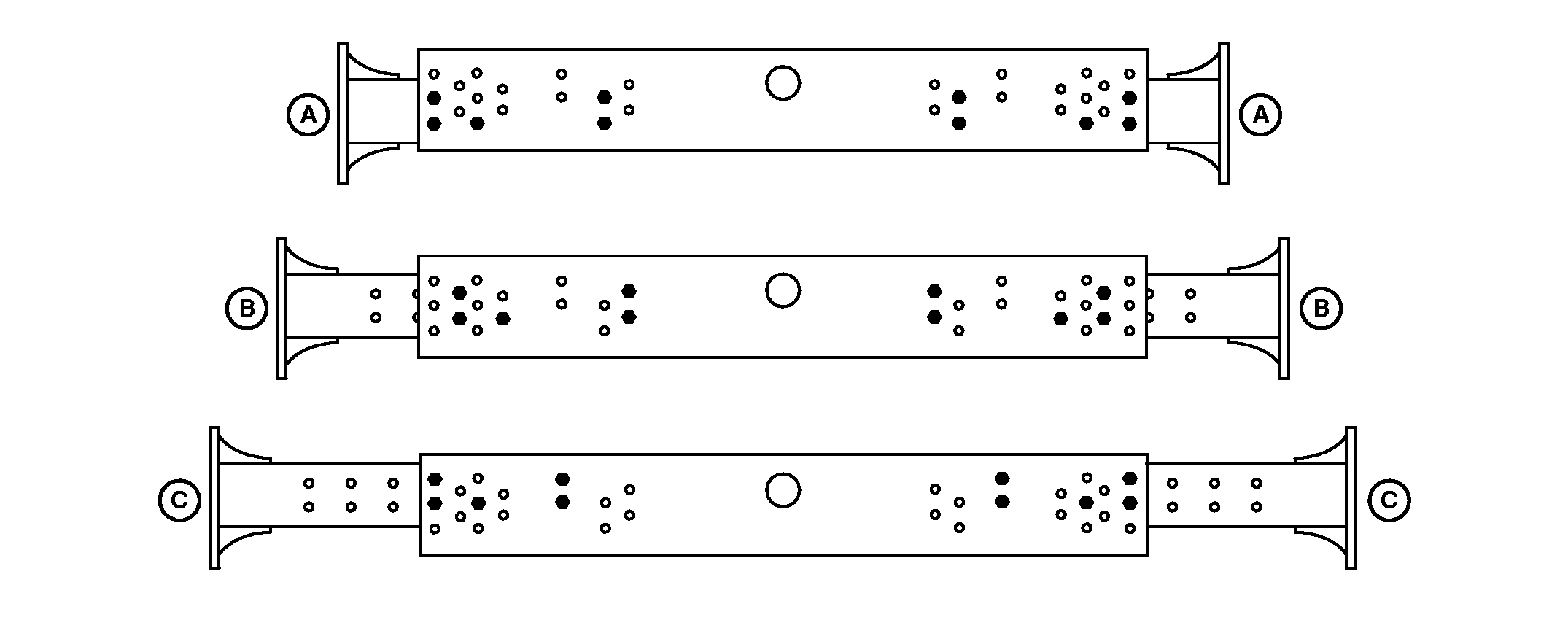

| Rear Axle Position A |
Inside to Inside Subtract (mm) | Outside to Outside Add (mm) | |||
| Rear Axle Type | Rear Spindle Type | mm | (in.) | ||
| Adjustable | Heavy Duty | 2922 | 115.0 | 503 | 503 |
| Adjustable | Four Wheel Drive | 2937 | 115.6 | 503 | 503 |

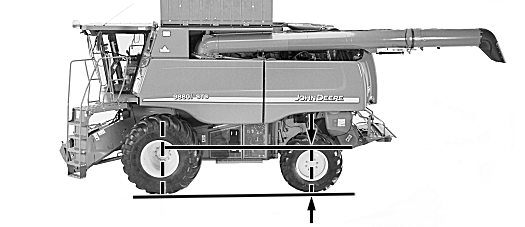

| 710/70R38 (171A8) R1W Front to Rear Height Difference | ||
| Rear Axle Type | mm | (in.) |
| Heavy Duty Adjustable | 23 | 0.9 |
OUO6075,00000FB -19-13OCT05-1/2 |
|
540/65R30 (150D) R1W
|
| 540/65R30 (150D) R1W Rear Tire Selection and Axle Spacing | |||||
| Rear Axle Position B |
Inside to Inside Subtract (mm) | Outside to Outside Add (mm) | |||
| Rear Axle Type | Rear Spindle Type | mm | (in.) | ||
| Adjustable | Heavy Duty | 3134 | 123.4 | 578 | 578 |
| Adjustable | Four Wheel Drive | 3196 | 125.8 | 578 | 578 |
| 800/65R32 (172A8) R1W Front to Rear Height Difference | ||
| Rear Axle Type | mm | (in.) |
| Heavy Duty Adjustable | 66 | 2.6 |
|
540/75R28 (154A8) R1W
|
| 540/75R28 (154A8) R1W Rear Tire Selection and Axle Spacing | |||||
| Rear Axle Position B |
Inside to Inside Subtract (mm) | Outside to Outside Add (mm) | |||
| Rear Axle Type | Rear Spindle Type | mm | (in.) | ||
| Adjustable | Heavy Duty | 3112 | 122.5 | 578 | 578 |
| Adjustable | Four Wheel Drive | 3220 | 126.8 | 578 | 578 |
| 800/65R32 (172A8) R1W Front to Rear Height Difference | 800/70R38 (173A8) R1W Front to Rear Height Difference | 900/60R32 (176A8) R1W Front to Rear Height Difference | ||||||
| Rear Axle Type | mm | (in.) | Rear Axle Type | mm | (in.) | Rear Axle Type | mm | (in.) |
| Heavy Duty Adjustable | 85 | 3.3 | Heavy Duty Adjustable | 0.0 | Heavy Duty Adjustable | 59 | 2.3 | |
|
600/65R28 (154A8) R1W
|
| 600/65R28 (154A8) R1W Rear Tire Selection and Axle Spacing | |||||
| Rear Axle Position C |
Inside to Inside Subtract (mm) | Outside to Outside Add (mm) | |||
| Rear Axle Type | Rear Spindle Type | mm | (in.) | ||
| Adjustable | Heavy Duty | 3435 | 135.2 | 638 | 638 |
| Adjustable | Four Wheel Drive | 3499 | 137.8 | 638 | 638 |
| 1050/50R32 (178A8) HF2 Front to Rear Height Difference | ||
| Rear Axle Type | mm | (in.) |
| Heavy Duty Adjustable | 41 | 1.6 |
|
NOTE: All of these tire combinations on these charts are not available for all of the tire combine models. |
Actual measurements will vary depending on actual rolling radius of the tires. |
OUO6075,00000FB -19-13OCT05-2/2 |
