CAUTION: Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

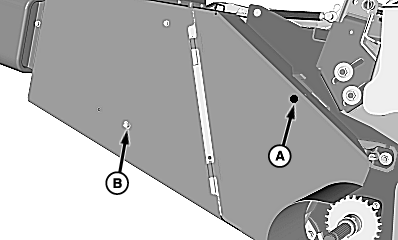

Right and left side of feeder house have a front and rear shield. Release latch (A) and swing front shield open for service.
Remove cap screw and lock nut (B) to remove rear shield.
A-Latch B-Bolt and Nut
OUO6075,000011A -19-07SEP05-1/1
CAUTION:
Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.
