IMPORTANT: Service times are for average conditions. Service more often if combine is used in extreme conditions.

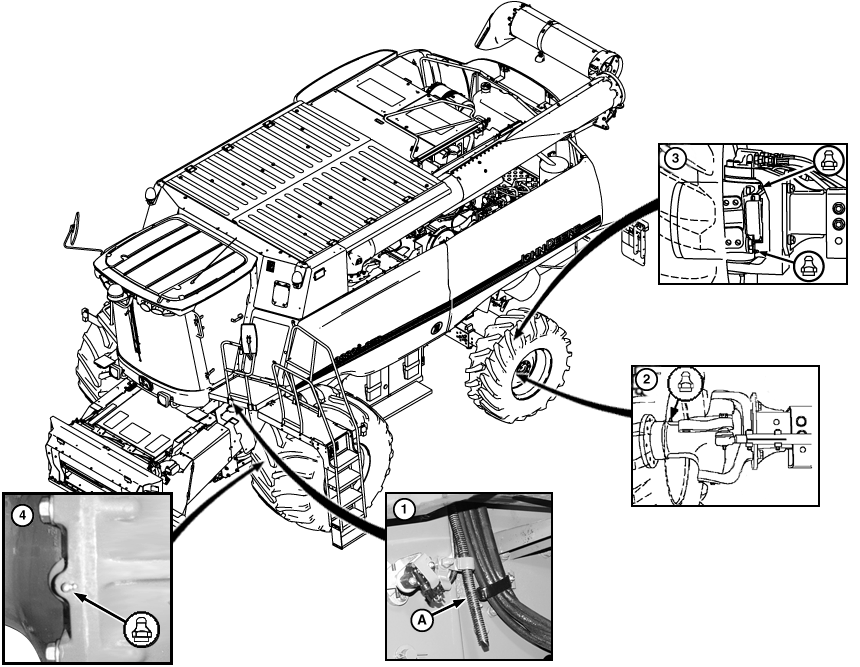

1. Air Conditioning Drain Hose- Clean air conditioning drain hose (A).

NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots every 10 hours. In normal conditions grease every 50 hours.

Grease rear hubs until grease purges from inner seal.

2. Heavy Duty Axle Spindle Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. In normal conditions grease fitting (both sides) every 50 hours.

3. Two Speed Four Wheel Drive Motor Pivots - Grease two fittings (both sides).

OUO6075,0000154 -19-10NOV05-1/2

OUO6075,0000154 -19-10NOV05-2/2
