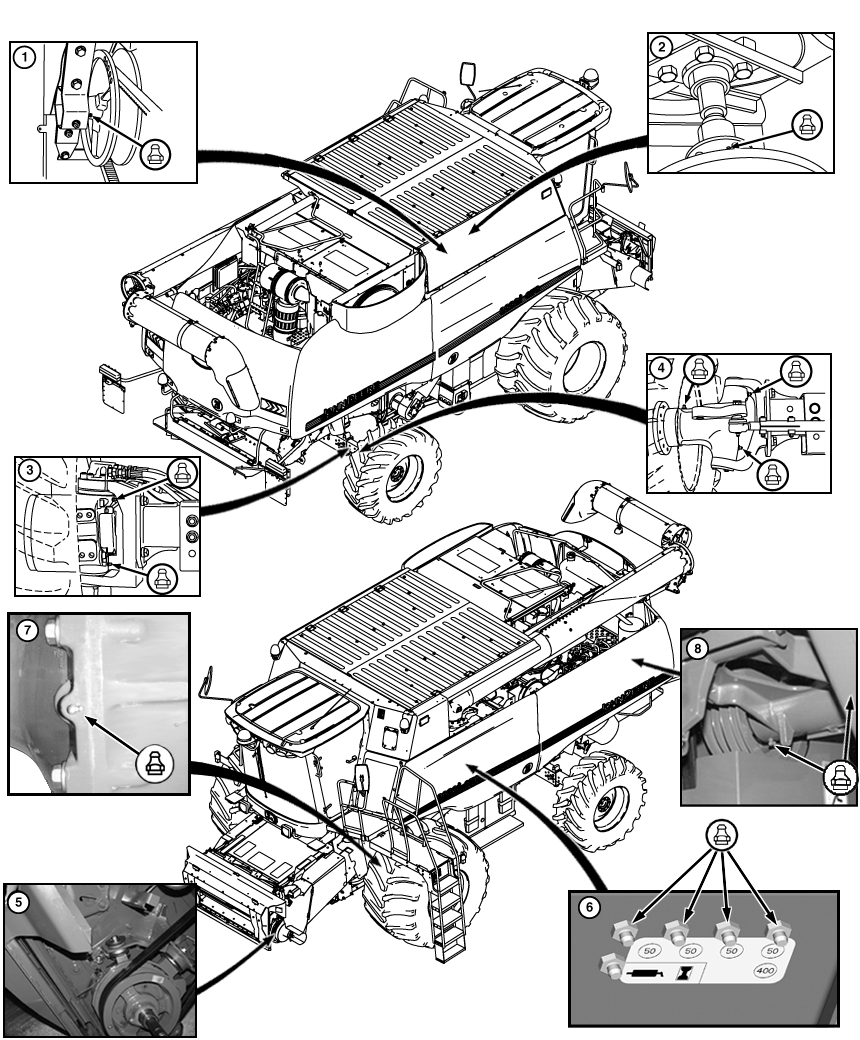

2. Cleaning Fan Variable Sheaves - Grease fitting on hub located on inner sheave. Rotate sheaves for fitting access.

NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots every 10 hours. In normal conditions grease every 50 hours.

3. Two Speed Four Wheel Drive Motor Pivots - Grease two fittings (both sides).

NOTE: Grease rear hubs until grease purges from inner seal.

4. Heavy Duty Axle Spindle Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. In normal conditions grease fitting (both sides) every 50 hours.

5. Feeder House Reverser Gear Case - Raise feeder house and lower safety stop. Gear cases with an oil cooler will require the gear case be run for several minutes. This ensures that the cooler is filled with oil. Oil level must show on knurled part of dipstick.

IMPORTANT: Pump 10 to 15 shots of grease into each fitting.

6. Unloading Auger Swivel Joint - Grease four lubrication lines.

7. Final Drive Outer Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. In normal conditions grease fitting (both sides) every 50 hours.

8. Chopper and Discharge Beater Countershaft Bearings - Grease two fittings.
