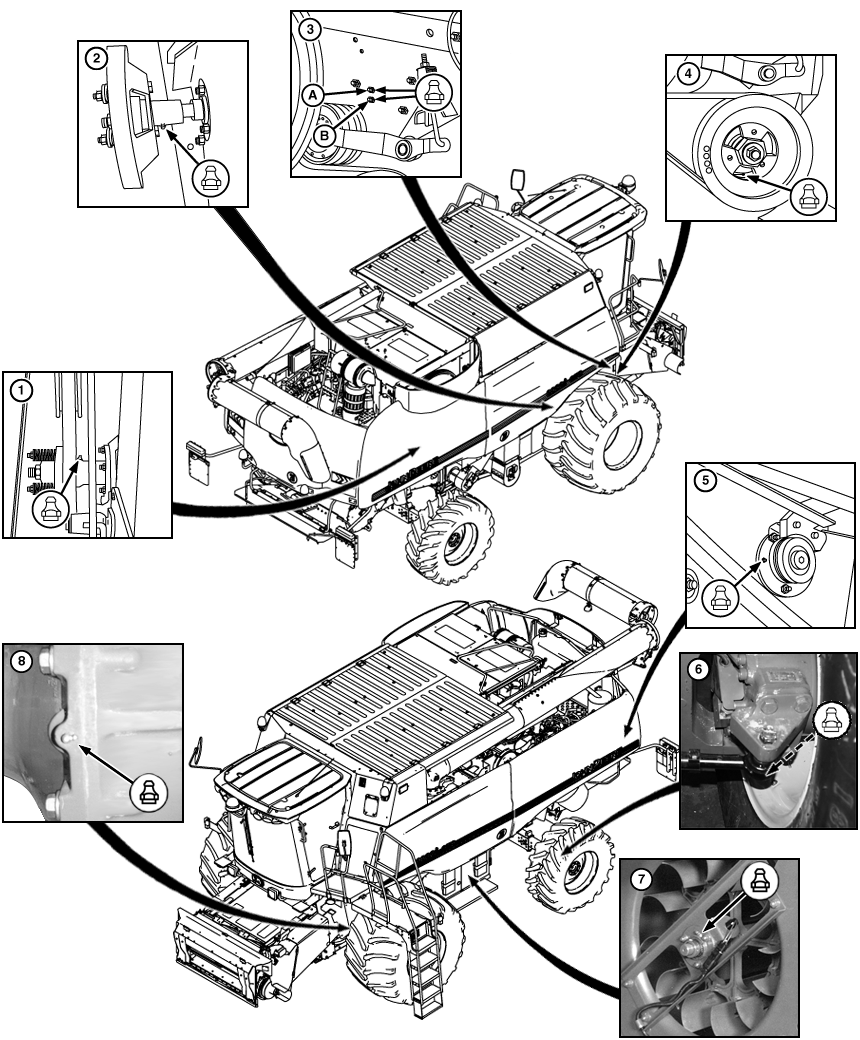

2. Conveyor Auger Drive Slip Clutch - Rotate sheave assembly to access fitting. Do not over grease.

3. Right-Hand Side Lube Bank - Grease fittings to lubricate primary countershaft bearing (A) and single tine separator bearing (B).

4. Feed Accelerator Bearing - Rotate sheaves to access fitting.

5. Discharge Beater Bearing - Grease fitting (both sides).

6. Rear Axle - Grease fitting (both sides) on power steering rod end ball joint.

7. Cleaning Fan Shaft Bearings - Grease fitting (both sides).

8. Final Drive Outer Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. In normal conditions grease fitting (both sides) every 50 hours.
