OMH222883: 9880i STS Combine(9880i STS 715701- ), Block File: OUO6075_000015F_19

Every 400 Hours

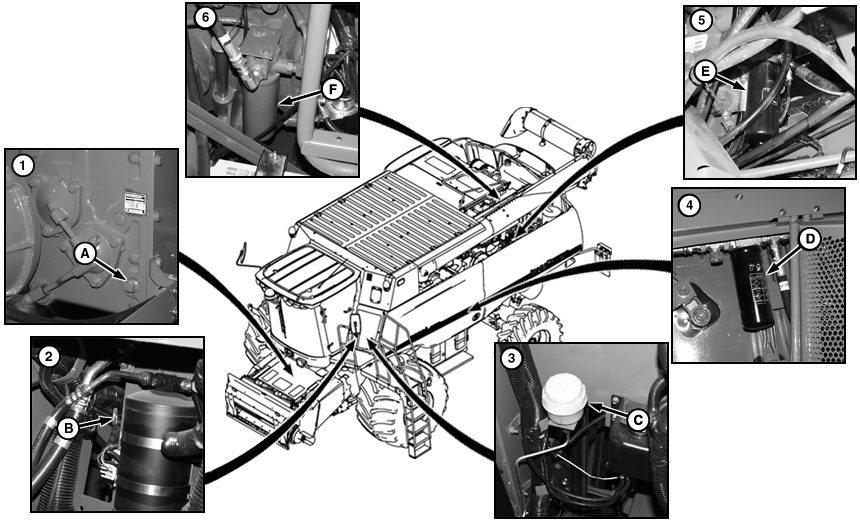

A-Plug
B-Dipstick

C-Brake Fluid Reservoir Cap
D-Hydrostatic Charge Filter

E-Hydraulic/Hydrostatic Filter

F-Engine PTO Gear Case Filter

1. Transmission - Remove plug (A) and check oil level. Add oil as needed to within 12 mm (1/2 in.) of bottom of hole.

2. Primary Countershaft Gear Case - Check primary countershaft gear case oil level with dipstick (B). Add oil as needed.

3. Brake Fluid - Check brake fluid level. Look through cap (C). Add brake fluid to 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

NOTE: It is not necessary to drain system when installing filters.

4. Hydrostatic Charge Filter - Replace hydrostatic charge filter (D). Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

5. Hydraulic/Hydrostatic Filter - Replace hydraulic/hydrostatic filter (E). Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

6. Engine PTO Gear Case - Replace engine gear case filter (F). Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

OUO6075,000015F -19-20SEP05-1/1
