Every 400 Hours
|
|
|
|
|
|
1.

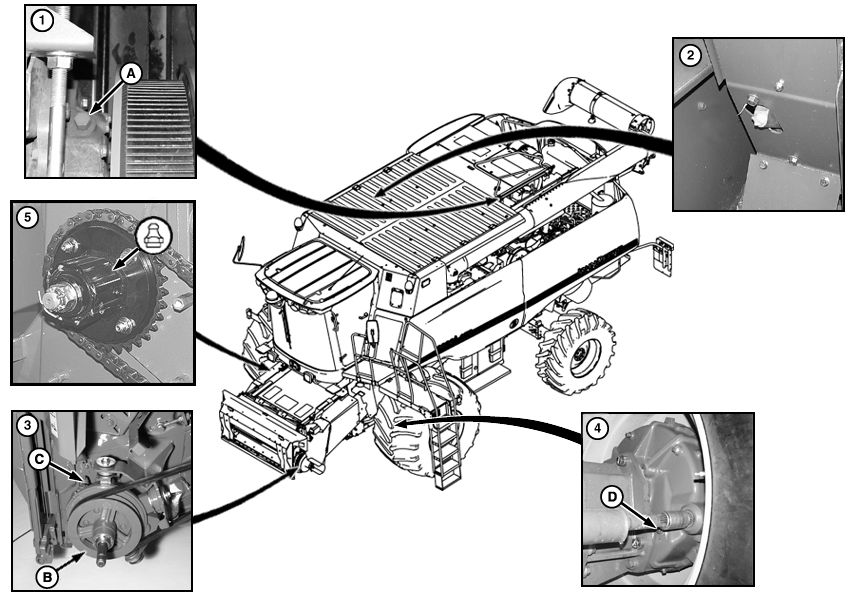

Single Tine Separator Two Speed Drive - Remove dipstick (A) and check oil level. Oil level should be between grooves on dipstick. Add oil as needed.
NOTE: Loading auger gear case does not need to be drained. 2. Loading Auger Gear Case - Check oil level with dipstick and add oil as needed. 3. Feeder House Reverser Gear Case - Raise feeder house and lower safety stop. Drain oil with plug (B) |
and refill at dipstick (C). Check with feeder house raised. Oil level must show on knurled part of dipstick.
4. Final Drive Oil - Remove plug (D) and check oil level (both sides). Oil should be within 12 mm (1/2 in) of bottom of hole. Add oil as needed. 5. Feeder House Slip Clutch - Grease fitting on upper feeder house slip clutch, until grease is forced out past seal. |
