Every 500 Hours

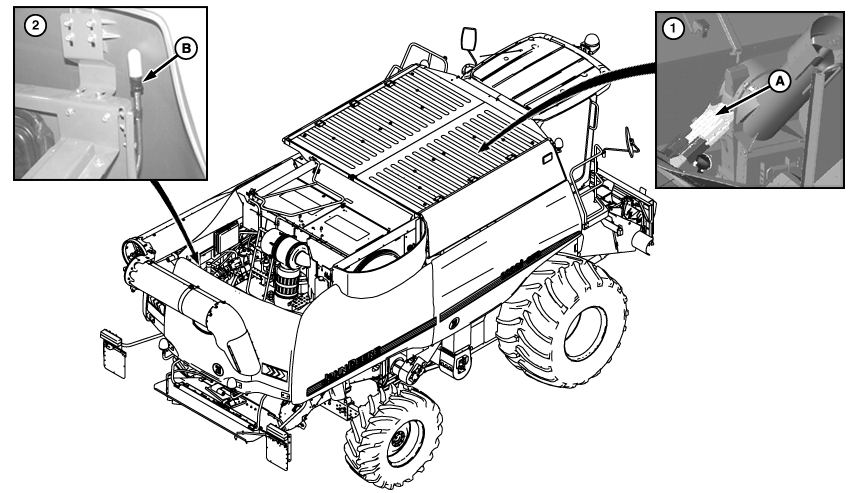

H84534


A-Moisture Sensor

B-Fuel Tank Breather



1. Moisture Sensor - Clean out moisture sensor (A) when operating in weedy or green crops. Remove cover and cleanout moisture sensor.

2. Fuel Tank Breather - Remove and replace fuel tank breather (B).

OUO6075,0000162 -19-20SEP05-1/1
