Service As Required
|
|

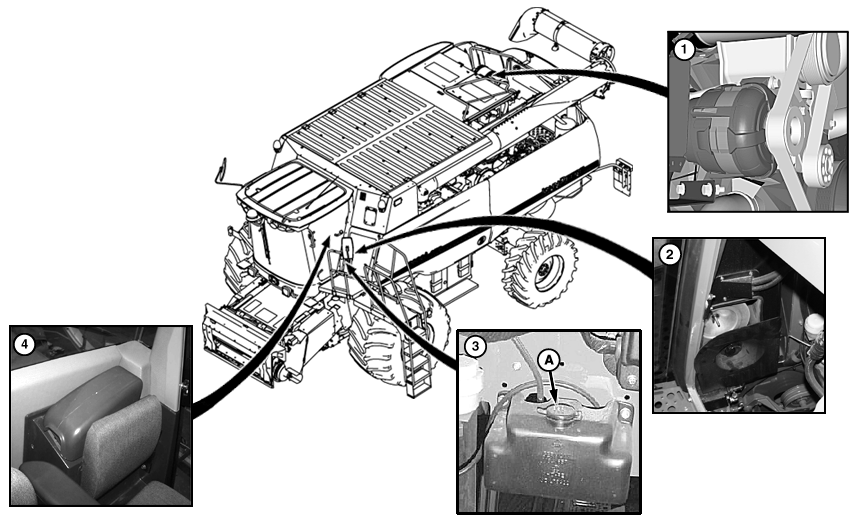

1.
Alternator Screen - Clean alternator screen when 50% covered with debris.
2. Cab Fresh Air Filter - Turn knob and pull out tray. Remove wing nut and pull out filter. Clean or replace as needed. |
3. Windshield Washer Reservoir - Open cap (A) and fill windshield washer reservoir as needed. 4. Recirculating Filter - Remove cooling compartment to remove filter. Clean or replace. Check to be certain air flow arrow points toward front of cab. |
OUO6075,0000165 -19-10NOV05-1/1 |
