Float Calibration

The float calibration procedure must be performed when a header is initially hooked up if the ground pressure (float) mode of operation will be used. This procedure calibrates the header pressure sensor.

Prepare Header for Calibration:

  • Turn key switch to "RUN" position
  • Attach header to combine and connect header harness
  • Move machine onto a level surface
  • Raise header completely

OUO6075,00001C5 -19-11OCT05-1/8

Press diagnostic button. dIA will be displayed.

ZX018729

OUO6075,00001C5 -19-11OCT05-2/8

Press calibration button. CAL and ACF will be displayed.

H73140

OUO6075,00001C5 -19-11OCT05-3/8

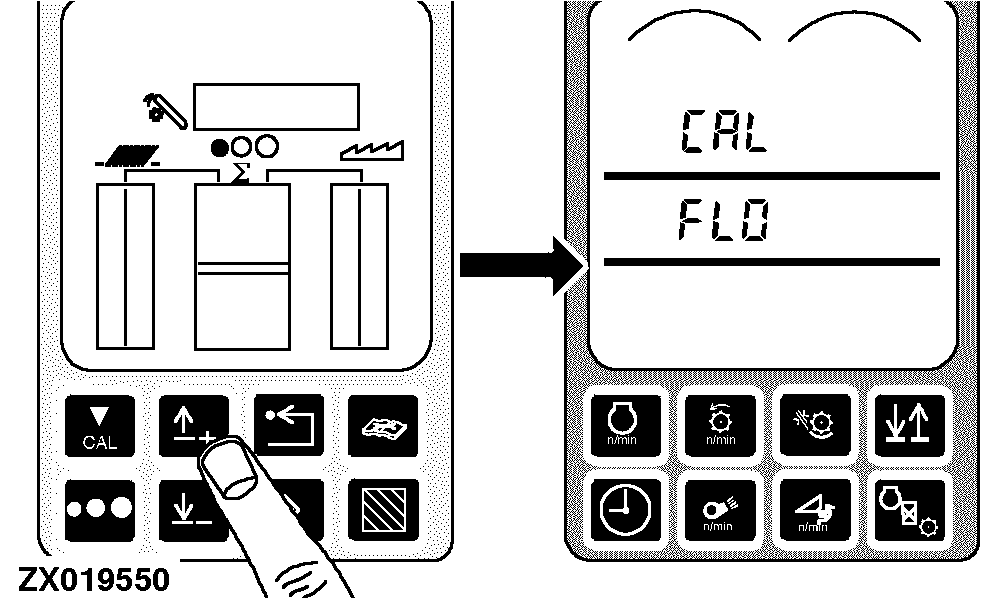

Press up or down arrow button to access FLO calibration mode. CAL and FLO will be displayed.

ZX019550

OUO6075,00001C5 -19-11OCT05-4/8

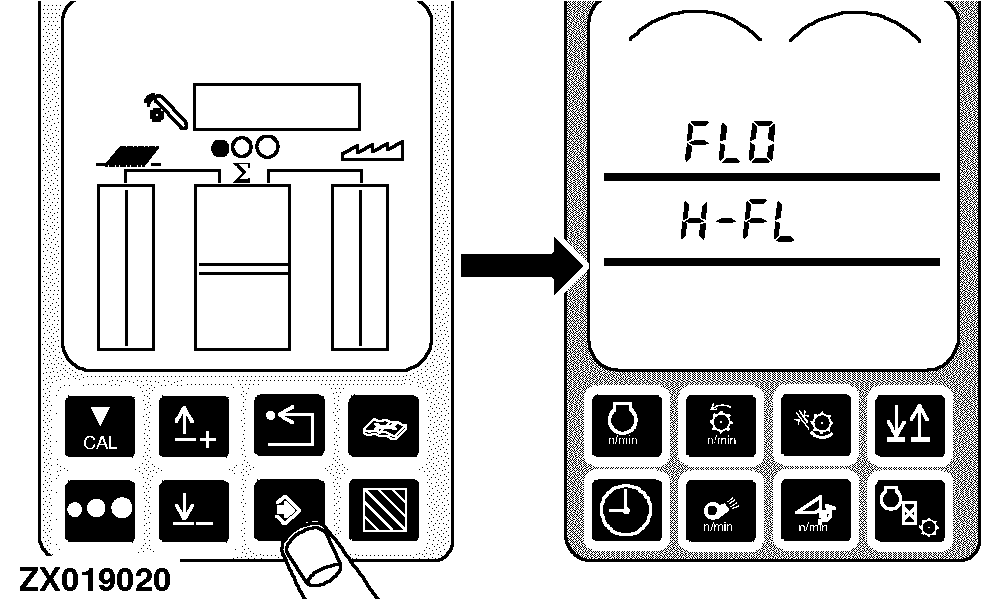

Press enter button. FLO and H-FL will be displayed.

ZX019020

OUO6075,00001C5 -19-11OCT05-5/8

With header raise/lower switch (A), lower header until cutterbar is about 100 mm (3.94 in.) above ground level (header must not touch ground).


A-Header Raise/Lower Switch

H78203

OUO6075,00001C5 -19-11OCT05-6/8

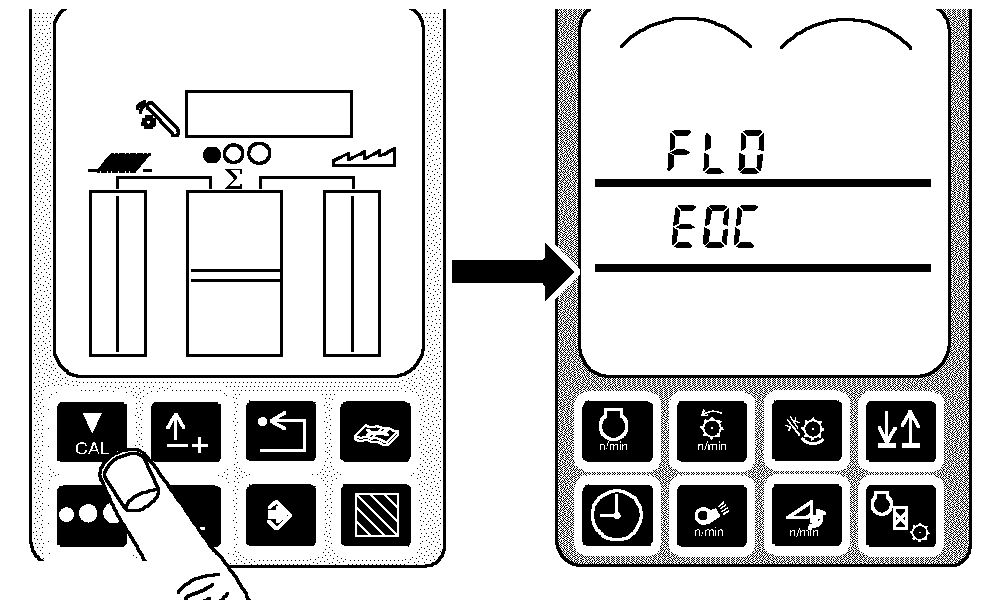

Press calibration button (header must not touch ground) to record float calibration level. FLO and EOC will be displayed.

If header touches ground, press back arrow button to abort calibration (not save values). Start calibration procedure again.

H84712

OUO6075,00001C5 -19-11OCT05-7/8

Press enter button to store float calibration pressure in header controller. CAL and FLO will be displayed.

Press back arrow button to return to normal operation.

ZX019550

OUO6075,00001C5 -19-11OCT05-8/8
