OMH222883: 9880i STS Combine(9880i STS 715701- ), Block File: OUO6075_00001F7_19

causym CAUTION: Shut OFF engine, set parking brake and remove key before entering grain tank. Support grain tank covers when entering grain tank.

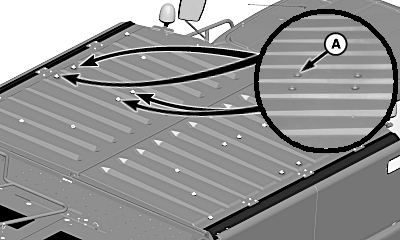

When covers do not open using the grain tank actuator, remove cap screws (A) to access grain tank.

A-Cap Screws (4 Used Per Cover)

OUO6075,00001F7 -19-25OCT05-1/2

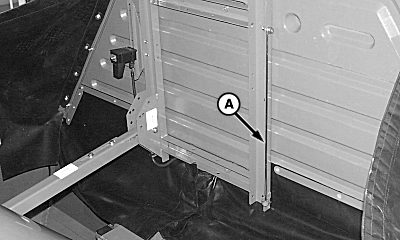

Raise grain tank covers to access grain tank. Support covers with grain tank prop support rod (A) located on both sides.

A-Grain Tank Cover Support Rod

Right-Hand Grain Tank Support Rod

OUO6075,00001F7 -19-25OCT05-2/2
