Feeder House Reverser Valve and Reverser Housing

Feeder house reverser valve (A) uses hydrostatic charge pressure to move a piston in housing (B) and shift linkage in the reverser gear box. Feeder house reverser will only engage when feeder house drum is not rotating. To operate feeder house reverser see Shifting Feeder House in the COMMANDTOUCH Armrest Console section.

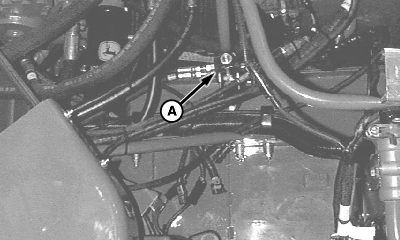

A-Feeder House Reverser Valve

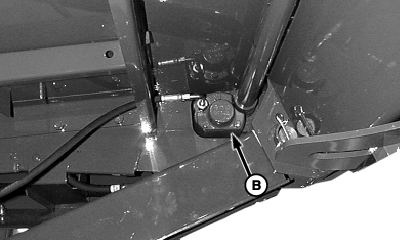

B-Piston Housing

OUO6075,0002811 -19-14MAR03-1/1
