Separator Grate Covers (Attachment)

Recommended for very dry small grain. The covers (A) are installed on the separator grates to help balance the chaff load to the cleaning shoe.

Small Wire Concave Initial Cover Configuration

  • Install two rows (eight covers) on the right-hand side and three rows (twelve covers) on the left-hand side. Make adjustments as necessary depending on conditions.

Large Wire Concave Initial Cover Configuration

  • Install three rows (twelve covers) on the right-hand side and two rows (eight covers) on the left-hand side. Make adjustments as necessary depending on conditions.

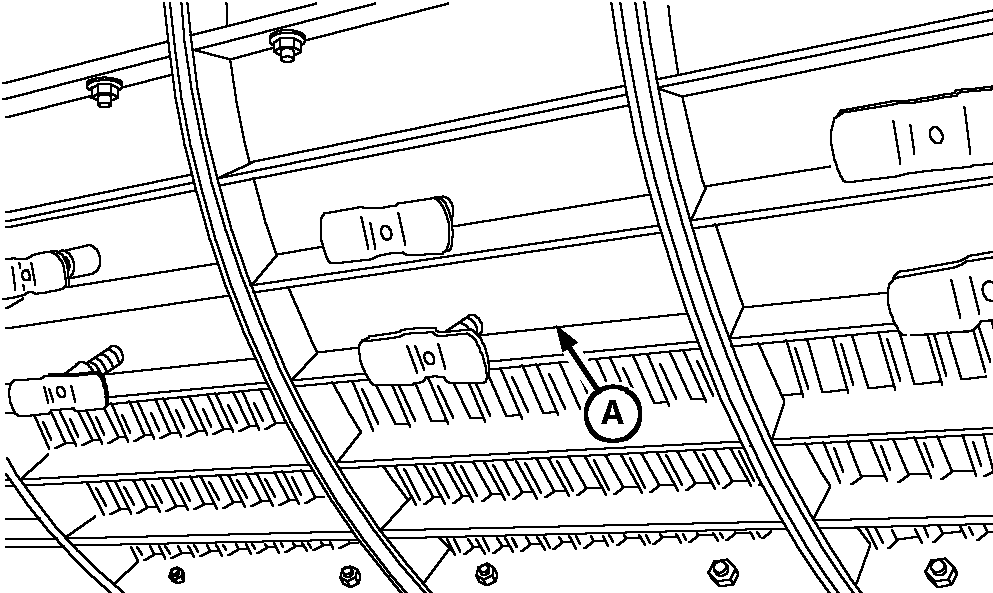

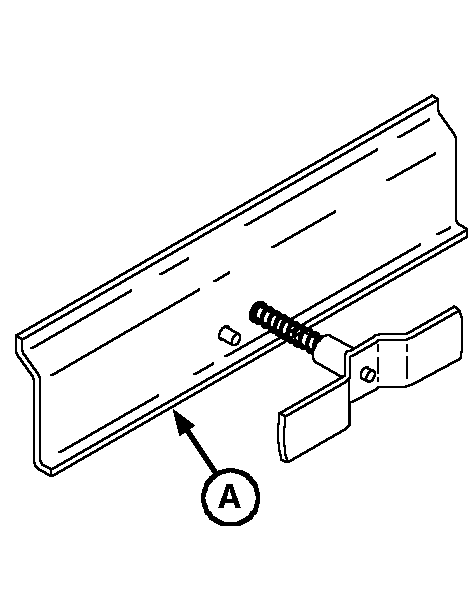

A-Separator Grate Covers

H54511
H54512

OUO6075,000295B -19-31MAR03-1/1
