Indicator Lights

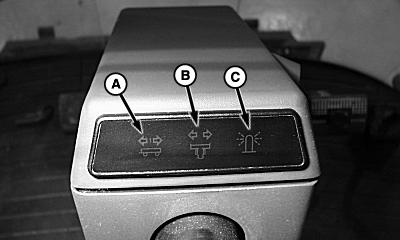

Trailer signal indicator light (A) will illuminate when trailer harness is hooked up and turn signal is applied.

Turn signal indicator light (B) will illuminate when turn signal is applied.

Beacon signal indicator light (C) will illuminate when beacon light switch is turned ON.

A-Trailer Signal Indicator Light
B-Turn Signal Indicator Light
C-Beacon Signal Indicator Light

OUO6075,0002D90 -19-22SEP04-1/1
