HEADERTRAK Lateral Tilt Indicator

For a quick visual indication of whether the header is level with the combine chassis, the HEADERTRAK Lateral Tilt is equipped with a manual tilt indicator.

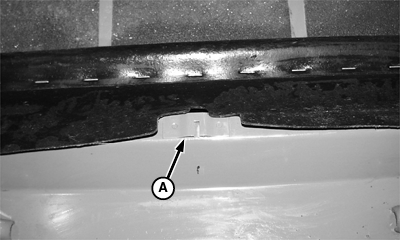

When notch (A) is in the center of the rubber seal, the header is approximately level with the combine body. The indicator may also be useful as a reference during operation.

A-Notch

OUO6075,0002F57 -19-07AUG03-1/1
