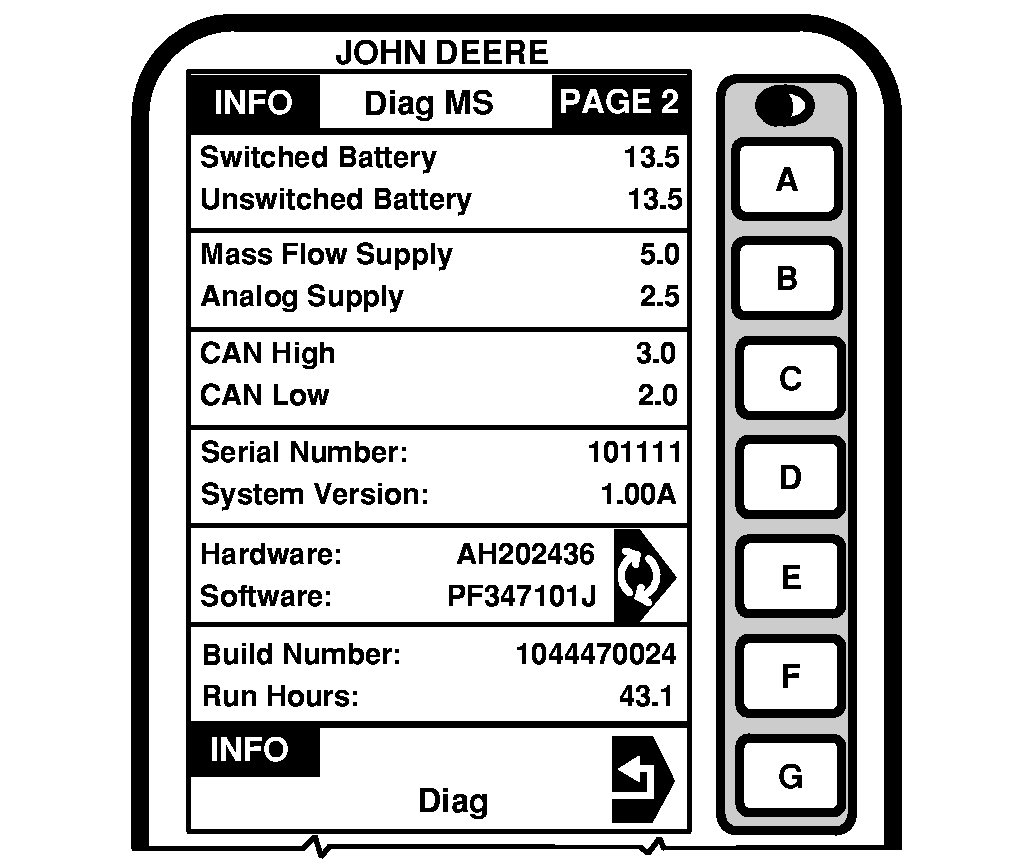

OMH222883: 9880i STS Combine(9880i STS 715701- ), Block File: OUO6075_0003038_19

Switched Battery Cell

This cell shows voltage at moisture sensor power input controlled by key switch.

Unswitched Battery Cell

This cell shows voltage at power input directly for battery.

CAN High Cell

This cell displays voltage on CAN High.

CAN Low Cell

This cell shows voltage on CAN Low.

Serial Number Cell

This cell shows serial number of moisture sensor.

System Version Cell

This cell is for factory use only.

Hardware Cell

This cell shows part number of moisture sensor.

Software Cell

This cell shows part number of moisture sensor.

Build Number Cell

This cell is for factory use only.

Run Hours Cell

This cell shows the number of hours of operation for the moisture sensor.

Mass Flow Supply and Analog Supply Cell

This cell shows voltage supplied to mass flow sensor.

OUO6075,0003038 -19-26AUG03-1/2

Analog Supply Cell

For factory use only.

OUO6075,0003038 -19-26AUG03-2/2
