Fuel System

CAUTION: Always shut OFF engine, set parking brake and remove key before performing maintenance work on fuel filters.

NOTE: Make sure precleaner bowl is fully seated to prevent air from entering the fuel system.

Close fuel shut off on fuel tank.

Remove precleaner and clean screen (A) if dirty fuel has been used. Reinstall and open fuel shut off. (See Cleaning Fuel Precleaner in Service Engine section).

Drain water out of water trap (B) and engine filter. (See Draining Filter Element in Service Engine section).

If dirty fuel has been used replace filter (C). (See Replacing Fuel Filter in Service Engine section).

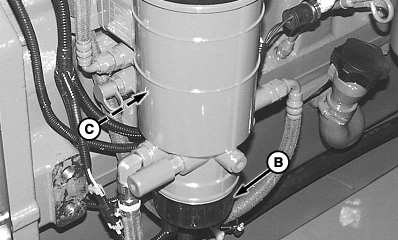

A-Precleaner Filter
B-Water Trap
C-Filter

OUO6075,00031F5 -19-09JUN04-1/1
