CLIMATRAK Low Pressure Switch

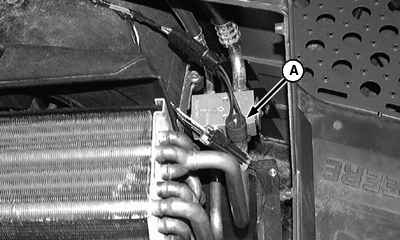

The low pressure switch (A) is located under instructional seat, protects the compressor if refrigerant is lost. The switch can also activate if there is insufficient air flow across the evaporator. It can also cause the compressor to cycle on cool days or if there is a slow leak in the system.

If the compressor cycles excessively, or if there is no cooling, see your John Deere dealer.

A-Low Pressure Switch

OUO6075,00032A4 -19-02DEC03-1/1
