Right-Hand Armrest and Control Console-Adjusting

A single control allows the operator to adjust the right-hand armrest control console.

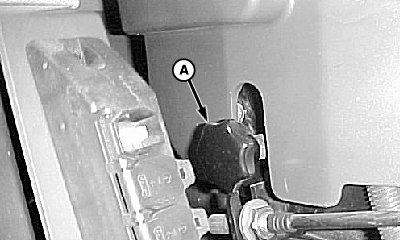

To adjust right-hand armrest control console, loosen knob (A) and slide armrest up/forward or down/back in slots on outer plate and tighten knob to lock armrest in place.


A-Knob

H78811

OUO6075,0003636 -19-26APR04-1/1
